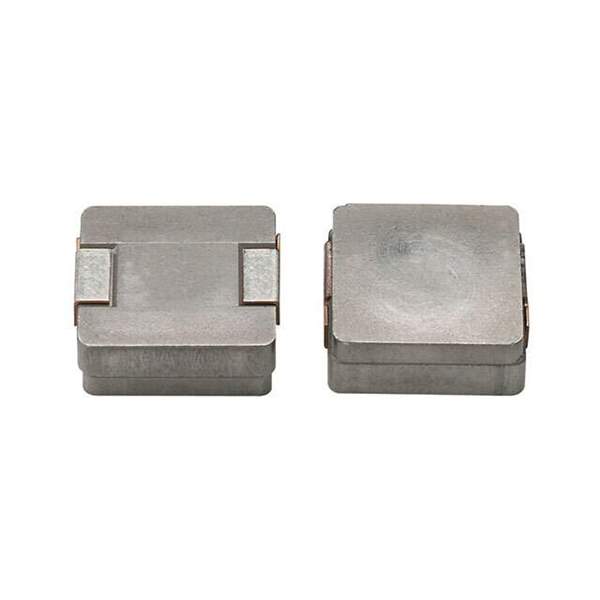

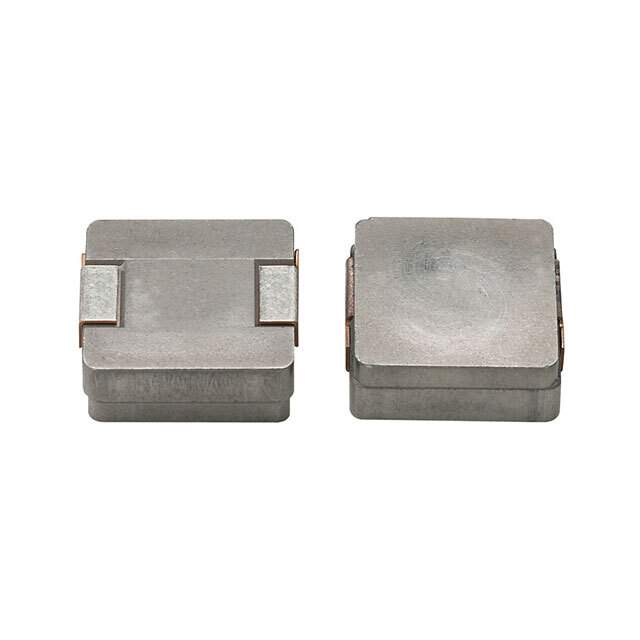

Same model may have multiple batches, images only for reference.

IHLP5050EZERR47MA1

Name: IHLP5050EZERR47MA1
Brand: Vishay
SKU: 1006641
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IHLP5050EZERR47MA1
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	IHLP-5050EZ-A1 .47 20% ER E3 / 470 nH Shielded Inductor 38 A 1.3mOhm Max Nonstandard
Datasheet	IHLP5050EZERR47MA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Vishay Dale
Series	IHLP-5050EZ-A1
Package	Tape & Reel
Material - Core	Metal Composite
Inductance	470 nH
Tolerance	±20%
Current Rating (Amps)	38 A
Current - Saturation (Isat)	65A
Shielding	Shielded
DC Resistance (DCR)	1.3mOhm Max
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.530" L x 0.508" W (13.46mm x 12.90mm)
Height - Seated (Max)	0.197" (5.00mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	541-IHLP5050EZERR47MA1TR,541-IHLP5050EZERR47MA1DKR,541-IHLP5050EZERR47MA1CT
Standard Package	250
Win Source Part Number	1006641-IHLP5050EZERR47MA1
Ultra Librarian 3D Model	Ultra Librarian IHLP5050EZERR47MA1 CAD Model

Alternative Products

Description

The IHLP5050EZERR47MA1 is a fixed inductor manufactured by Vishay.

Win Source Part Number: 1006641-IHLP5050EZERR47MA1
Shielded: Yes
Inductance: 470nH
Height: 0.197 inches
AEC-Q200: Yes
Mounting: Surface Mount Technology (SMT)
Standard Package: 250
Tolerance: ±20%
DC Resistance (DCR): 1.3mOhm max
Current Rating: 38A
Applications: Power management, automotive, and industrial
