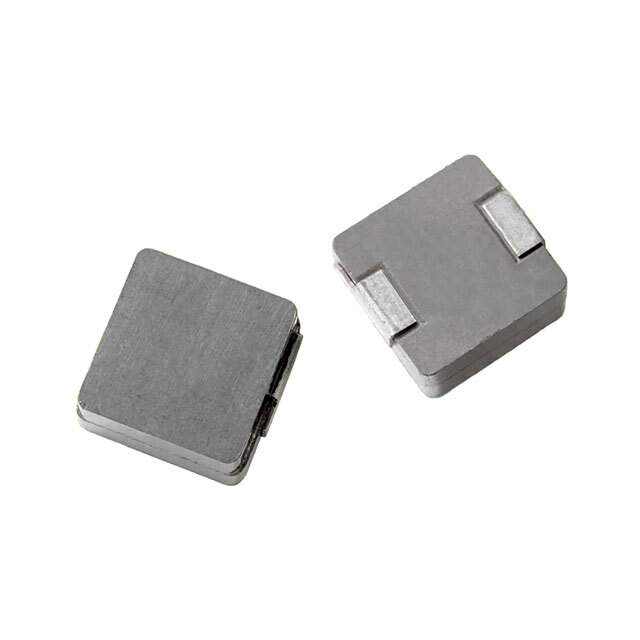

Same model may have multiple batches, images only for reference.

IHLP5050FDER2R2MA1

Name: IHLP5050FDER2R2MA1
Brand: Vishay
SKU: 1107359
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IHLP5050FDER2R2MA1
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	IHLP-5050FD-A1 2.2 20% ER E3 / 2.2 µH Shielded Inductor 22 A 4.2mOhm Max Nonstandard
Datasheet	IHLP5050FDER2R2MA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Vishay Dale
Series	IHLP-5050FD-A1
Package	Tape & Reel
Material - Core	Metal Composite
Inductance	2.2 µH
Tolerance	±20%
Current Rating (Amps)	22 A
Current - Saturation (Isat)	40A
Shielding	Shielded
DC Resistance (DCR)	4.2mOhm Max
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.525" L x 0.508" W (13.34mm x 12.90mm)
Height - Seated (Max)	0.252" (6.40mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	541-IHLP5050FDER2R2MA1CT,541-IHLP5050FDER2R2MA1TR,541-IHLP5050FDER2R2MA1DKR
Standard Package	250
Win Source Part Number	1107359-IHLP5050FDER2R2MA1
Ultra Librarian 3D Model	Ultra Librarian IHLP5050FDER2R2MA1 CAD Model

Alternative Products

Description

The IHLP5050FDER2R2MA1 is a fixed inductor manufactured by Vishay Dale.

Series: IHLP-5050FD-A1 series
Package: Shielded package in tape and reel
Inductance: 2.2 µH
Tolerance: ±20%
Rating: AEC-Q200
Maximum DC Resistance: 4.2mOhm
Current Rating: 22A
Saturation Current: 40A
Dimensions: 0.525" L x 0.508" W (13.34mm x 12.90mm)
Applications: Ideal for use in various electronic devices and systems
