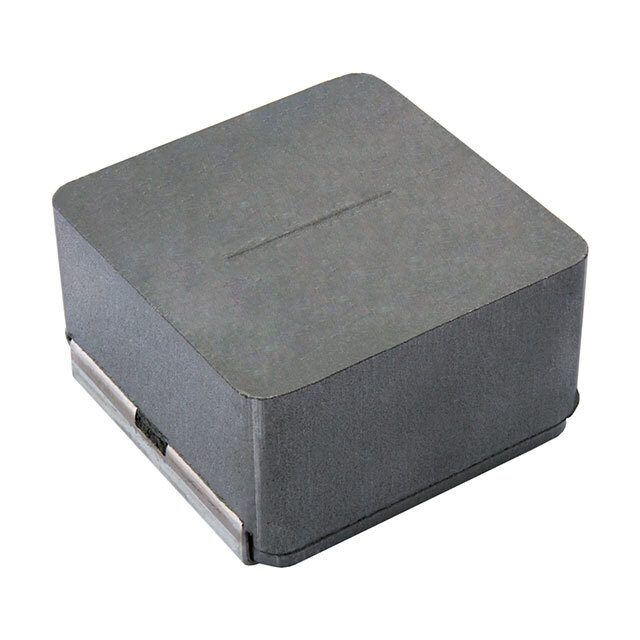

Same model may have multiple batches, images only for reference.
IHLP6767GZERR82M11 Vishay – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

IHLP6767GZERR82M11

Part No IHLP6767GZERR82M11
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 820NH 56.5A 1.08 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Molded
Inductance 820 nH
Tolerance ±20%
Current Rating (Amps) 56.5 A
Current - Saturation (Isat) 45A
Shielding Shielded
DC Resistance (DCR) 1.08mOhm Max
Frequency - Self Resonant 36MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Case / Package Nonstandard
Size / Dimension 0.675" L x 0.675" W (17.15mm x 17.15mm)
Height - Seated (Max) 0.276\
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1532457-IHLP6767GZERR82M11
Ultra Librarian 3D Model Ultra Librarian IHLP6767GZERR82M11 CAD Model
