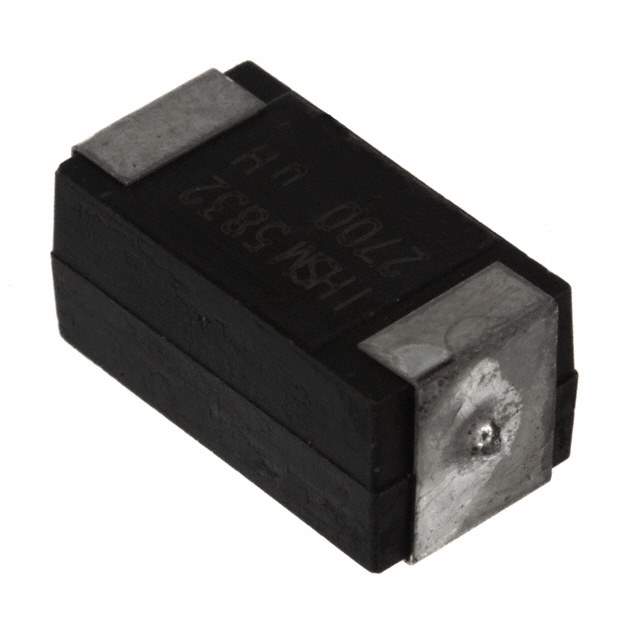

Same model may have multiple batches, images only for reference.

IHSM4825ER220L

Name: IHSM4825ER220L
Brand: Vishay
SKU: 1327457
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IHSM4825ER220L
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 22UH 1.7A 152 MOHM SMD / 22 µH Unshielded Inductor 1.7 A 152mOhm Max Nonstandard
Datasheet	IHSM4825ER220L Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Vishay Dale
Packaging	Reel - TR
Material - Core	Ferrite
Inductance	22 µH
Tolerance	±15%
Current Rating (Amps)	1.7 A
Current - Saturation (Isat)	1.02A
Shielding	Unshielded
DC Resistance (DCR)	152mOhm Max
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	1 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.540" L x 0.250" W (13.72mm x 6.35mm)
Height - Seated (Max)	0.225" (5.72mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	541-1038-2,541-1038-1,IHSM4825ER220L-ND,541-1038-6
Standard Package	750
Win Source Part Number	1327457-IHSM4825ER220L
Ultra Librarian 3D Model	Ultra Librarian IHSM4825ER220L CAD Model

Alternative Products

Description

The Vishay Dale IHSM4825ER220L is a fixed inductor with an inductance of 22 µH and a tolerance of ±15%.

Core Material: Ferrite
DC Resistance: 152mOhm Max
Shielding: Unshielded
Size: 0.540" L x 0.250" W (13.72mm x 6.35mm)
Height: 0.225" (5.72mm)
Current Rating: 1.7 A
Saturation Current: 1.02A
Operating Temperature: -55°C to 125°C
Packaging: Reel
Standard Package: 750
Mounting: Surface Mount
ROHS3 compliant: Yes
