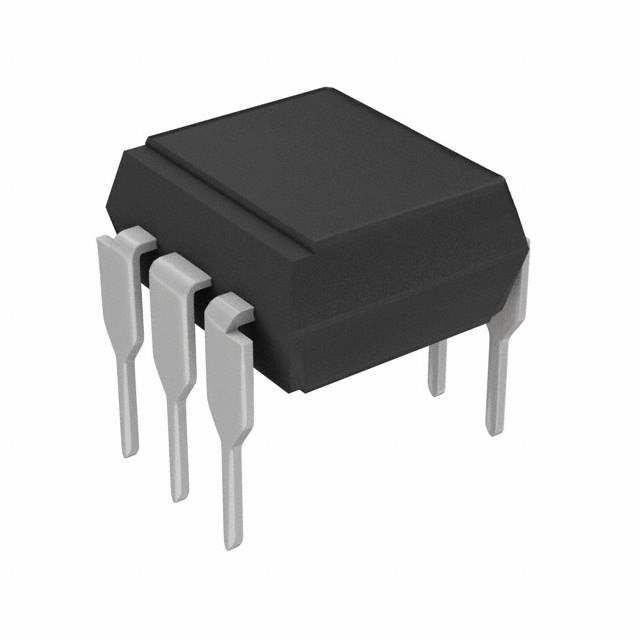

IL4216 Real Image
Same model may have multiple batches, images only for reference.

IL4216

Part No IL4216
Manufacturer Vishay
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 5.3KV TRIAC 6DIP
Datasheet
IL4216 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Output Type Triac
Zero Crossing Circuit No
Number of Channels 1
Isolation Voltage 5300Vrms
Voltage - Off State 600V
Static dV/dt (Min) 10kV/μs
Current - LED Trigger (Ift) (Max) 700μA (Typ)
Current - On State (It (RMS)) (Max) 300mA
Current - Hold (Ih) 200μA
Forward Voltage 1.3V
Continuous forward current- Max 60mA
Temperature Range - Operating -55°C to 100°C
Mounting Through Hole
Case / Package 6-DIP
Approvals BSI, CSA, cUR, FIMKO, UR
Win Source Part Number 068808-IL4216
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IL4216 CAD Model

Description

The Vishay 068808-IL4216 is a triac output optocoupler designed for use in isolation applications. The device has a forward voltage of 1.3V and an isolation voltage of 5300Vrms.

  • Forward Voltage: 1.3V
  • Isolation Voltage: 5300Vrms
  • Current Rating: 300mA
  • Package: 6-DIP
  • Temperature Range: -55°C to 100°C
  • Approvals: BSI, CSA, cUR, FIMKO, UR

The device has a temperature range of -55°C to 100°C and is suitable for use in BSI, CSA, cUR, FIMKO, UR approved applications.
