Same model may have multiple batches, images only for reference.

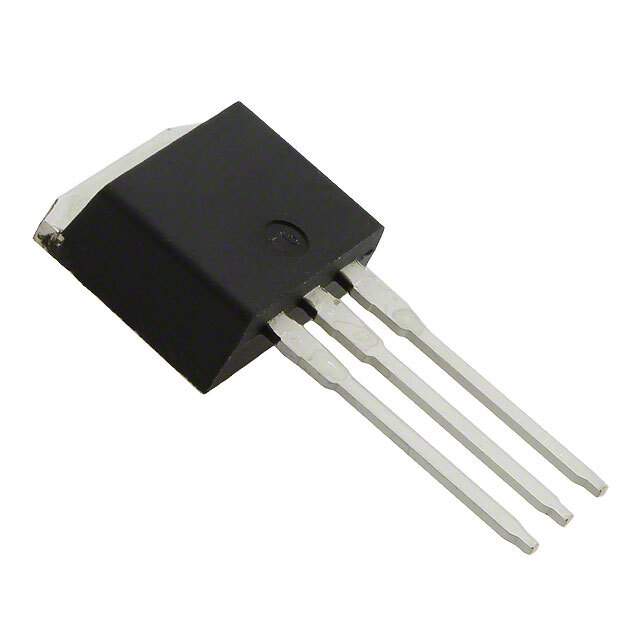

IRL520LPBF Real Image
Same model may have multiple batches, images only for reference.

IRL520LPBF

Part No IRL520LPBF
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 100V 9.2A TO-262
Datasheet
IRL520LPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 100V
Continuous Drain Current at 25°C 9.2A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4V, 5V
Gate-Source Threshold Voltage 2V @ 250μA
Max Gate Charge 12nC @ 5V
Max Input Capacitance 490pF @ 25V
Maximum Gate-Source Voltage ±10V
Power Dissipation (Max) 60W (Tc)
Maximum Rds On at Id,Vgs 270 mOhm @ 5.5A, 5V
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting Through Hole
Case / Package TO-262-3
Dimension TO-262-3 Long Leads, I2Pak, TO-262AA
Win Source Part Number 1047501-IRL520LPBF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IRL520LPBF CAD Model

Description

The IRL520LPBF is an N-channel MOSFET manufactured by Vishay with a drain-source breakdown voltage of 100V and a continuous drain current of 9.2A (Tc).

  • Power Dissipation: 60W (Tc)
  • Max Rds On @ Id,Vgs: 270 mOhm @ 5.5A, 5V
  • Mounting Type: through-hole
  • Package: TO-262-3 package with long leads, I2Pak, TO-262AA
  • Gate-Source Threshold Voltage: 2V @ 250μA
  • Max Gate Charge: 12nC @ 5V
  • Max Input Capacitance: 490pF @ 25V
  • Temperature Range: -55°C to 175°C (TJ)
