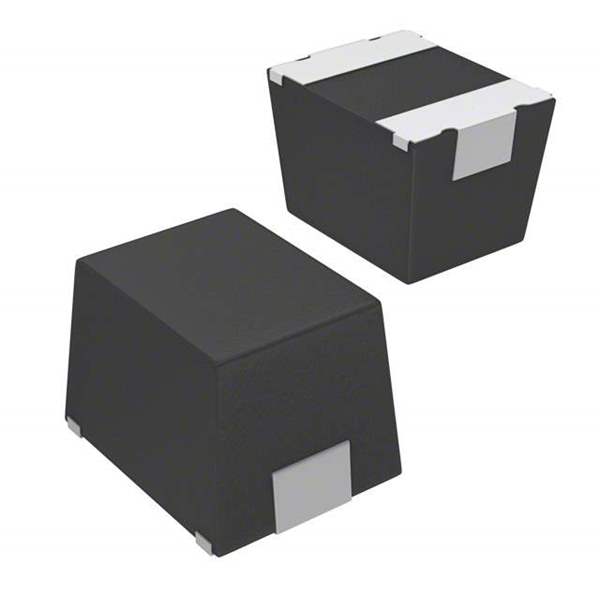

Same model may have multiple batches, images only for reference.

ISC1210ER680K

Name: ISC1210ER680K
Brand: Vishay
SKU: 777246
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ISC1210ER680K
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 68UH 90MA 10 OHM SMD / Inductor RF Chip Shielded/Molded Wirewound 68uH 10% 2.52MHz 30Q-Factor Powdered Iron 0.09A 10Ohm DCR 1210 T/R
Datasheet	ISC1210ER680K Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Vishay Dale
Series	ISC-1210
Packaging	Reel package
Type	Wirewound
Material - Core	Powdered Iron
Inductance	68μH
Tolerance	±10%
Current Rating	90mA
Shielding	Shielded
DC Resistance (DCR)	10 Ohm Max
Q @ Freq	30 @ 2.52MHz
Frequency - Self Resonant	11MHz
Operating Temperature Range	-55°C ~ 125°C
Test Frequency	2.52MHz
Mounting	SMD
Package	1210
Manufacturer Package	1210
Dimension	0.126" L x 0.098" W (3.20mm x 2.49mm)
Height - Seated (Maximum)	0.095" (2.41mm)
Win Source Part Number	777246-ISC1210ER680K
Popularity	Medium
Supply and Demand Status	Balance
Family Name	ISC-1210
ECCN	EAR99
Halogen Free	Compliant
Estimated EOL Date	2029
Ultra Librarian 3D Model	Ultra Librarian ISC1210ER680K CAD Model

Alternative Products

Description

The Vishay Dale 777246-ISC1210ER680K inductor is a wirewound device that is designed for use in SMD mounting applications.

Inductance: 68μH
Current Rating: 90mA
Tolerance: ±10%
Shielded: Yes
DC Resistance: 10 Ohm Max
Q @ Freq: 30 @ 2.52MHz
Frequency Self-Resonant: 11MHz
Test Frequency: 2.52MHz
Case: 1210
Package Type: Reel
