Same model may have multiple batches, images only for reference.

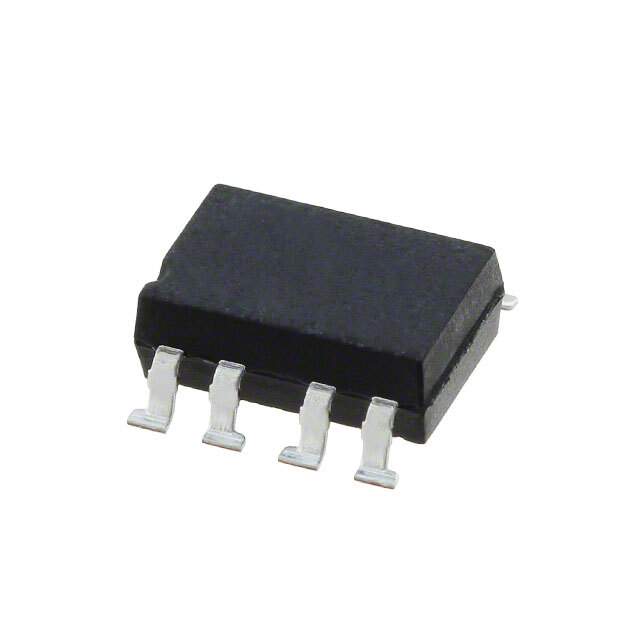

LH1262CACTR Real Image
Same model may have multiple batches, images only for reference.

LH1262CACTR

Part No LH1262CACTR
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5.3KV 2CH PHVOLT 8-SMD
Datasheet
LH1262CACTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay
Packaging Reel - TR
Status Active
Number of Channels 2
Isolation Voltage 5300Vrms
Switching Turn-On and Turn-Off Time 35μs, 90μs
Input Type DC
Output Type Photovoltaic
Maximum Output Voltage 15V
Channel Output Current 1μA
Forward Voltage 1.26V
Continuous forward current- Max 50mA
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 8-SMD
Win Source Part Number 018591-LH1262CACTR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian LH1262CACTR CAD Model

Description

Vishay's LH1262CACTR is a high-quality photovoltaic isolator that is designed for use in a variety of electronic applications.

  • Input Type: DC
  • Number of Channels: 2
  • Forward Voltage: 1.26V
  • Isolation Voltage: 5300Vrms
  • Switching Turn-On Time: 35μs
  • Switching Turn-Off Time: 90μs
  • Operating Temperature: Up to 85°C
  • Package: 8-SMD
  • Supply and Demand: Limited
