Same model may have multiple batches, images only for reference.

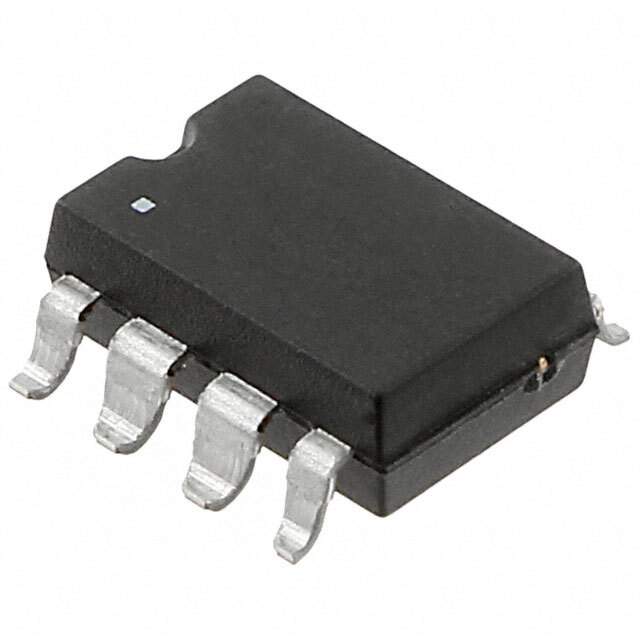

LH1512BAC Real Image
Same model may have multiple batches, images only for reference.

LH1512BAC

Part No LH1512BAC
Manufacturer Vishay
Catalog Solid State Relays
Description SMD-8 SSR DUAL 1 FORM A/B, C
Datasheet
LH1512BAC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Circuit DPST-NO/NC (1 Form A and B)
Output Type AC, DC
Max On Resistance 10 Ohm
Load Current 200mA
Voltage - Input 1.26VDC
Voltage - Load 0 to 200 V
Mounting SMD (SMT)
Termination Style Gull Wing
Case / Package 8-SMD
Relay Type Relay
Win Source Part Number 120282-LH1512BAC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LH1512BAC CAD Model

Description

The Vishay Relay is a DPST-NO/NC (1 Form A and B) relay that comes in an 8-SMD package.

  • Maximum On Resistance: 10 Ohm
  • Load Current: 200mA
  • Voltage Input: 1.26VDC
  • Relay Type: AC and DC
  • Voltage Load: 0 to 200 V
  • Applications: Relays
  • Popularity: Medium
  • Termination Style: Gull-wing
  • Mounting: Surface-mounted
