Same model may have multiple batches, images only for reference.

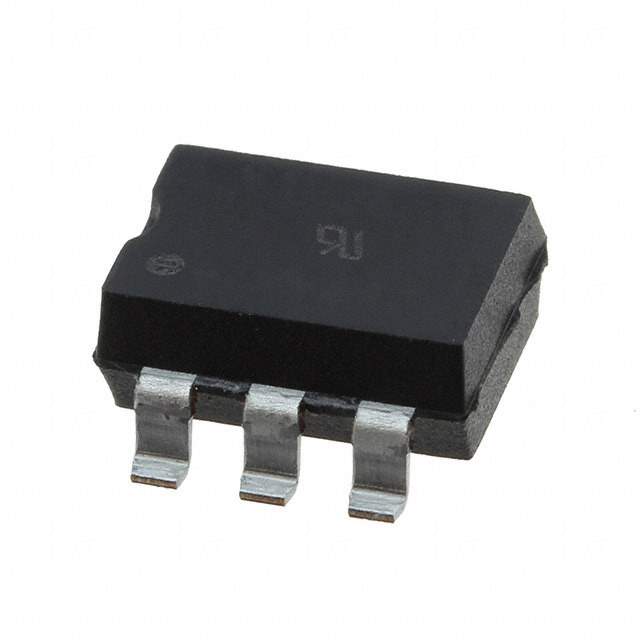

LH1525AAB Real Image
Same model may have multiple batches, images only for reference.

LH1525AAB

Part No LH1525AAB
Manufacturer Vishay
Catalog Solid State Relays
Description SMD-6 SSR 1 FORM A
Datasheet
LH1525AAB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Max On Resistance 36 Ohm
Load Current 250mA
Voltage - Input 1.16VDC
Voltage - Load 0 to 400 V
Mounting SMD (SMT)
Termination Style Gull Wing
Case / Package 6-SMD
Relay Type Relay
Win Source Part Number 018598-LH1525AAB
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Industrial, Communications & Networking, Sensing & Instrumentation
Ultra Librarian 3D Model Ultra Librarian LH1525AAB CAD Model

Description

The LH1525AAB from Vishay is a solid-state relay designed for use in industrial, communications and networking, and sensing and instrumentation applications.

  • Load Current: 250mA
  • Voltage Load: 0 to 400V
  • Relay Type: SPST-NO (1 Form A)
  • Circuit: AC/DC output type
  • Voltage Input: 1.16VDC
  • Maximum On Resistance: 36 Ohm
  • Termination Style: Gull Wing
  • Mounting Style: SMD (SMT)
  • Case/Package: 6-SMD package
