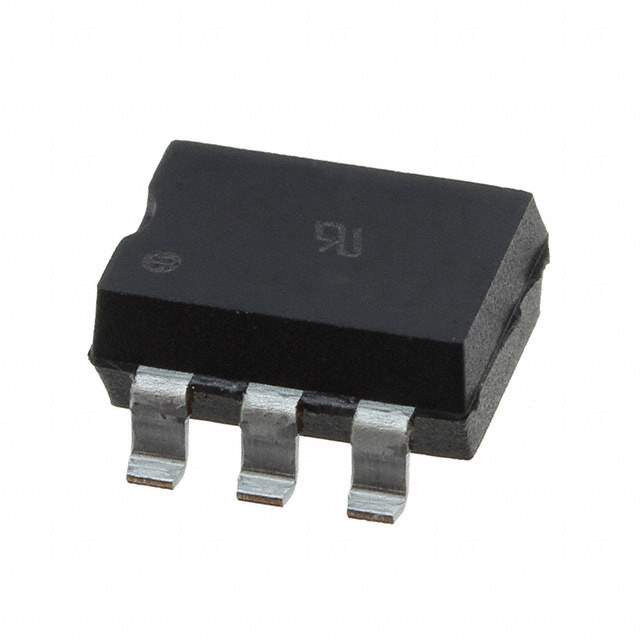

LH1546AABTR Real Image LH1546AABTR Real Image
Same model may have multiple batches, images only for reference.
LH1546AABTR Real Image LH1546AABTR Real Image
LH1546AABTR Real Image LH1546AABTR Real Image
Same model may have multiple batches, images only for reference.

LH1546AABTR

Part No LH1546AABTR
Manufacturer Vishay
Catalog Solid State Relays
Description SMD-6 SSR 1 FORM A
Datasheet
LH1546AABTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Vishay
Packaging Reel - TR
Status Active
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Max On Resistance 28 Ohm
Load Current 120mA
Voltage - Input 1.26VDC
Voltage - Load 0 to 350 V
Mounting SMD (SMT)
Termination Style Gull Wing
Case / Package 6-SMD
Relay Type Relay
Win Source Part Number 018603-LH1546AABTR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LH1546AABTR CAD Model

Description

The Vishay LH1546AABTR is a SPST-NO (1 Form A) relay that is designed for use in electronic circuits.

  • Maximum Load Current: This relay has a maximum load current of 120mA and a voltage load range of 0 to 350 V.
  • Maximum On Resistance: It has a maximum on resistance of 28 Ohm and a voltage input of 1.26VDC.
  • Package: The relay is packaged in a 6-SMD case/package and has a gull wing termination style.
  • Suitability: It is suitable for use in various applications such as industrial control systems and home automation systems.
  • Status: The Vishay LH1546AABTR is an active component, and its supply and demand status is balanced.
