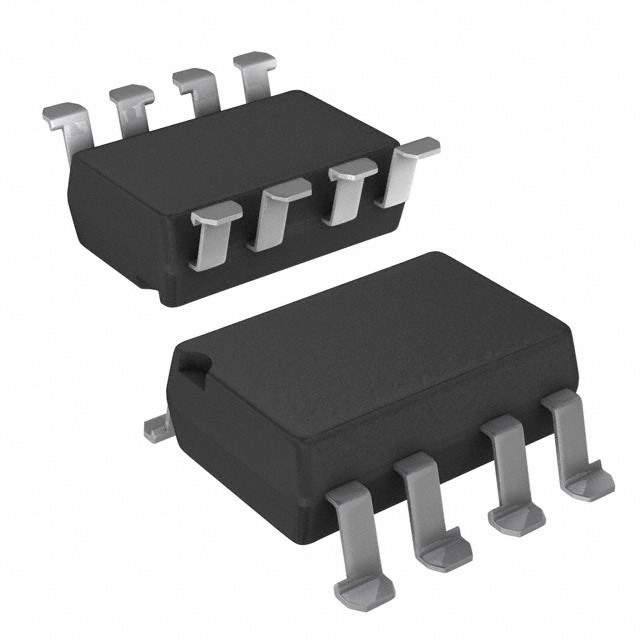

LH1556AAC Real Image
Same model may have multiple batches, images only for reference.

LH1556AAC

Part No LH1556AAC
Manufacturer Vishay
Catalog Solid State Relays
Description SMD-8 SSR DUAL 1 FORM A
Datasheet
LH1556AAC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Circuit DPST (2 Form A)
Output Type AC, DC
Max On Resistance 28 Ohm
Load Current 120mA
Voltage - Input 1.26VDC
Voltage - Load 0 to 350 V
Mounting SMD (SMT)
Termination Style Gull Wing
Case / Package 8-SMD
Relay Type Relay
Win Source Part Number 1052524-LH1556AAC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LH1556AAC CAD Model

Description

The Vishay LH1556AAC is a DPST (2 Form A) relay that features a maximum voltage input of 1.26VDC and a load current of 120mA. Vishay

  • Relay Type: DPST (2 Form A)
  • Maximum Input Voltage: 1.26VDC
  • Load Current: 120mA
  • Maximum On-Resistance: 28 ohms
  • Load Voltage: Up to 350V
  • Package: Tube/Rail
  • Termination Style: Gull-Wing
