Same model may have multiple batches, images only for reference.

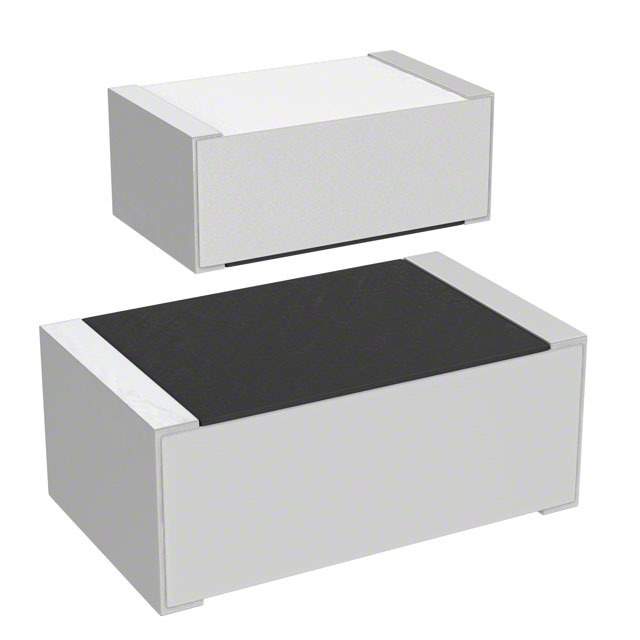

M55342E06B649ART1 Real Image
Same model may have multiple batches, images only for reference.

M55342E06B649ART1

Part No M55342E06B649ART1
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 649 OHM 0.1% 0.15W 0705
Datasheet
M55342E06B649ART1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Vishay
Packaging Reel - TR
Status Active
Resistance (Ohms) 649
Tolerance ±0.1%
Power (Watts) 0.15W
Composition Thin Film
Features Military, Non-Inductive
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C to 150°C
Case / Package 0705
Height - Seated (Max) 0.033" (0.84mm)
Number of Terminations 2
Failure Rate R (0.01%)
Win Source Part Number 118923-M55342E06B649ART1
Ultra Librarian 3D Model Ultra Librarian M55342E06B649ART1 CAD Model

Description

The Vishay M55342E06B649ART1 is a military-grade, non-inductive, thin film resistor with a resistance of 649 ohms and a tolerance of ±0.1%.

  • Power Rating: 0.15W
  • Temperature Coefficient: ±25ppm/°C
  • Failure Rate: R (0.01%)
  • Packaging: reel
  • Height: 0.033" (0.84mm)
  • Status: active
