Same model may have multiple batches, images only for reference.

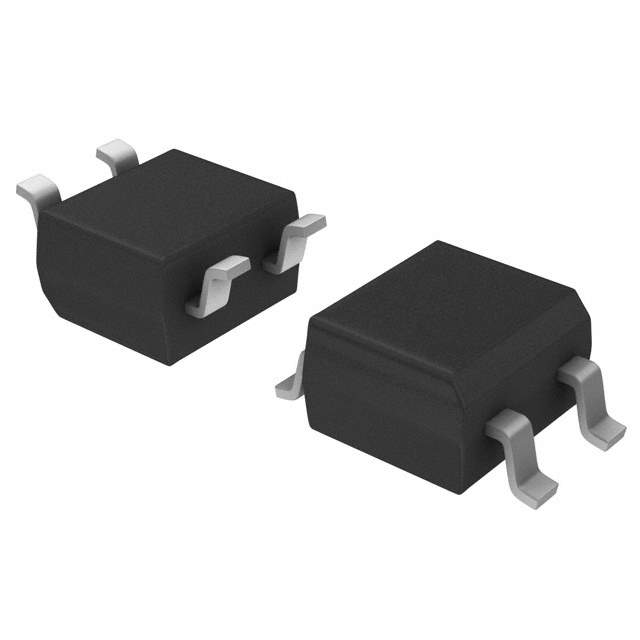

MB4S-E3/45 Real Image
Same model may have multiple batches, images only for reference.

MB4S-E3/45

Part No MB4S-E3/45
Manufacturer Vishay
Catalog Bridge Rectifiers
Description RECT BRIDGE .5A 400V TO-269AA
Datasheet
MB4S-E3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 400V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Max) @ If 1V @ 400mA
Current - Reverse Leakage @ Vr 5μA @ 400V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package TO-269AA (MBS)
Win Source Part Number 022358-MB4S-E3/45
Ultra Librarian 3D Model Ultra Librarian MB4S-E3/45 CAD Model

Description

The Vishay MB4S-E3/45 is a single-phase standard diode that is designed for surface-mount applications.

  • Maximum Peak Reverse Voltage: 400V
  • Maximum Forward Voltage: 1V @ 400mA
  • Current Average Rectified (Io): 500mA
  • Current Reverse Leakage: 5μA @ 400V
  • Package: TO-269AA (MBS)

This diode is ideal for use in a wide variety of applications, including power supplies, rectifiers, and inverters.
