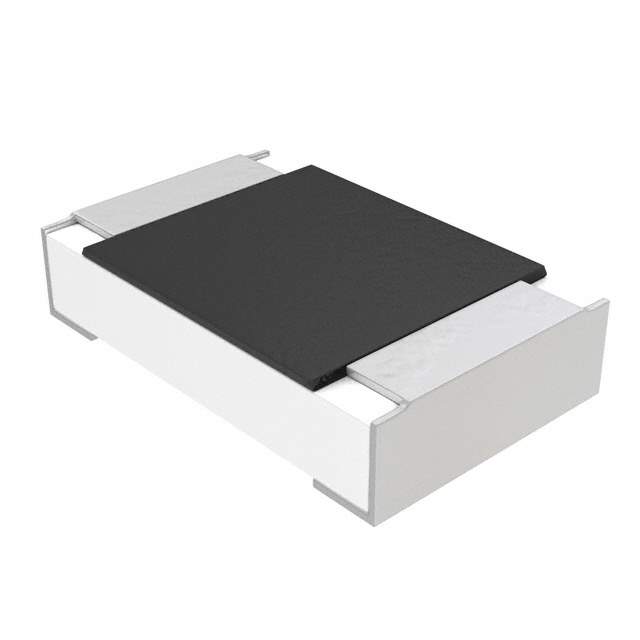

Same model may have multiple batches, images only for reference.

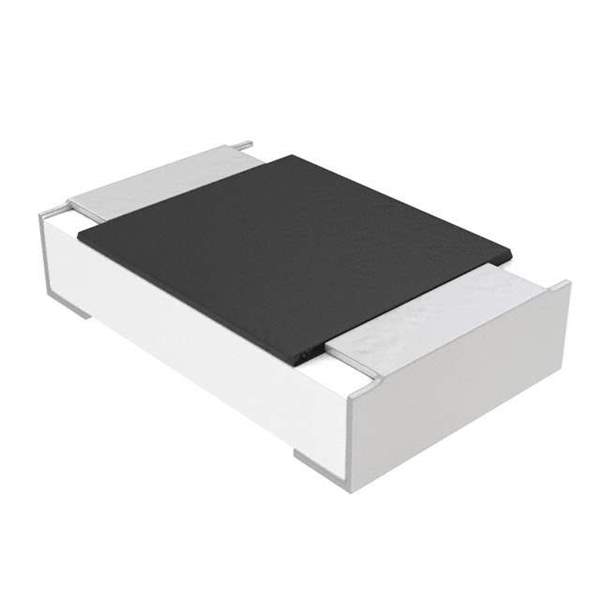

MCU08050C1000FP500 Real Image
Same model may have multiple batches, images only for reference.

MCU08050C1000FP500

Part No MCU08050C1000FP500
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 100 OHM 1% 1/5W 0805  /  100 Ohms ±1% 0.2W, 1/5W Chip Resistor 0805 (2012 Metric) Anti-Sulfur Thin Film
Datasheet
MCU08050C1000FP500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Beyschlag/Draloric/BC Components
Series MCU - Professional
Package Tape & Reel
Resistance 100 Ohms
Tolerance ±1%
Power (Watts) 0.2W, 1/5W
Composition Thin Film
Features Anti-Sulfur
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names MCU0805-100-CFCT,MCU0805-100-CFTR,MCU0805-100-CFDKR
Standard Package 5,000
Win Source Part Number 958512-MCU08050C1000FP500
Ultra Librarian 3D Model Ultra Librarian MCU08050C1000FP500 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components MCU08050C1000FP500 is a chip resistor with a surface mount package.

  • Series: MCU - Professional
  • Feature: Anti-Sulfur
  • Height-Seated (Max): 0.022" (0.55mm)
  • Standard Package: 5,000
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Composition: Thin Film
  • Terminations: 2
  • Resistance: 100 Ohms
  • Power (Watts): 0.2W, 1/5W
  • Package/Case: 0805 (2012 Metric)
  • Supplier Device Package: 0805
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8533.21.0030
