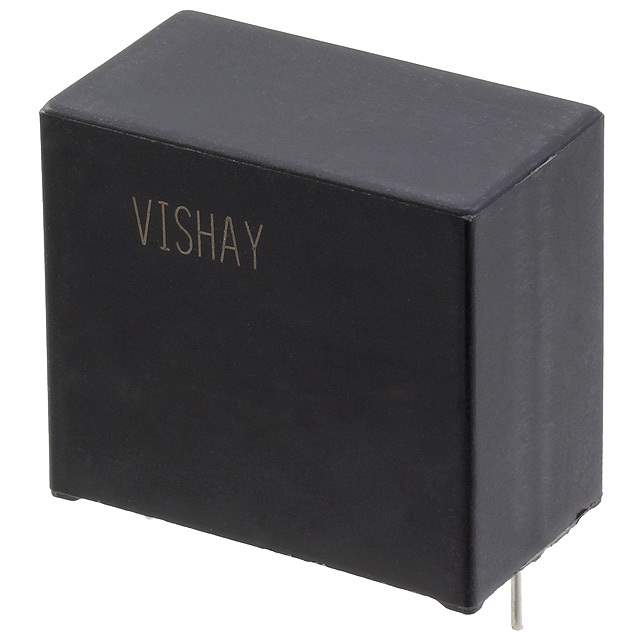

MKP1848C53080JK2 Real Image
Same model may have multiple batches, images only for reference.

MKP1848C53080JK2

Part No MKP1848C53080JK2
Manufacturer Vishay
Catalog Film Capacitors
Description CAP FILM 3UF 5% 800VDC RADIAL / 3 µF Film Capacitor 800V Polypropylene (PP), Metallized Radial
Datasheet
MKP1848C53080JK2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series MKP1848C DC-Link
Package Bulk
Capacitance 3 µF
Tolerance ±5%
Voltage Rating - DC 800V
Dielectric Material Polypropylene (PP) , Metallized
ESR (Equivalent Series Resistance) 23 mOhms
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 1.260" L x 0.433" W (32.00mm x 11.00mm)
Height - Seated (Max) 0.827" (21.00mm)
Termination PC Pins
Lead Spacing 1.083" (27.50mm)
Applications DC Link, DC Filtering
Features Low ESR; Low ESL; Long Life
Standard Package 130
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0070
Win Source Part Number 1352215-MKP1848C53080JK2
Ultra Librarian 3D Model Ultra Librarian MKP1848C53080JK2 CAD Model

Description

The MKP1848C53080JK2 is a DC-link capacitor with a capacitance of 3μF. Vishay Beyschlag/Draloric/BC Components manufactures the capacitor.

  • Capacitance: 3μF
  • Voltage Rating: 800V
  • Tolerance: ±5%
  • ESR: 23 mOhms
  • Package/Case: Radial
  • Mounting Type: Through Hole
  • Dielectric Material: Polypropylene (PP), Metallized
  • Application: DC Filtering, DC Link
  • Temperature Range: -55°C to 105°C
