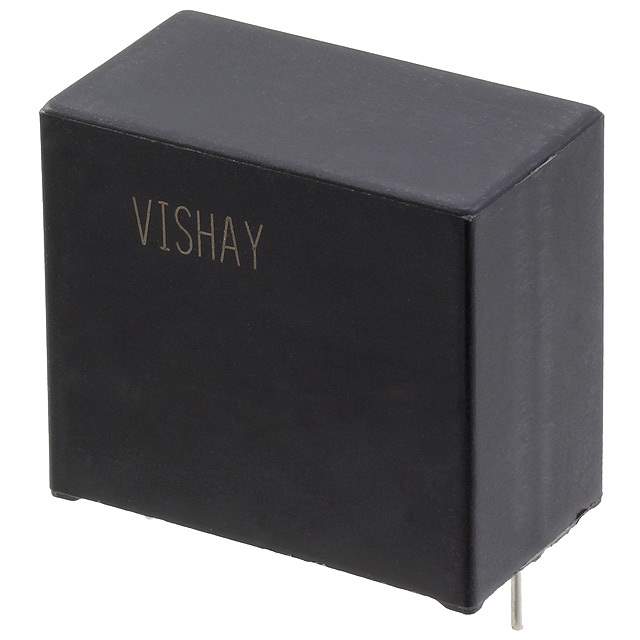

MKP1848C63580JY2 Real Image
Same model may have multiple batches, images only for reference.

MKP1848C63580JY2

Part No MKP1848C63580JY2
Manufacturer Vishay
Catalog Film Capacitors
Description CAP FILM 35UF 5% 800VDC RADIAL  /  35 µF Film Capacitor 800V Polypropylene (PP), Metallized Radial
Datasheet
MKP1848C63580JY2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series MKP1848C DC-Link
Package Bulk
Capacitance 35 µF
Tolerance ±5%
Voltage Rating - DC 800V
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 8 mOhms
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Dimension 2.264" L x 0.984" W (57.50mm x 25.00mm)
Height - Seated (Max) 1.772" (45.00mm)
Termination PC Pins
Lead Spacing 2.067" (52.50mm)
Applications DC Link, DC Filtering
Features Low ESR; Low ESL; Long Life
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0070
Other Names 1848C63580JY2
Standard Package 55
Win Source Part Number 1030220-MKP1848C63580JY2
Ultra Librarian 3D Model Ultra Librarian MKP1848C63580JY2 CAD Model

Description

The MKP1848C63580JY2 is a film capacitor from Vishay Beyschlag/Draloric/BC Components.

  • Series: MKP1848C DC-Link
  • Application: DC Link and DC Filtering
  • Capacitance: 35μF
  • Voltage Rating: 800V
  • ESR: 8mOhms
  • ESL: Low
  • Life: Long Life
  • RoHS Compliant: Yes
  • Package: Radial
  • Termination: PC Pins
  • Temperature Range: -55°C to 105°C
