Same model may have multiple batches, images only for reference.

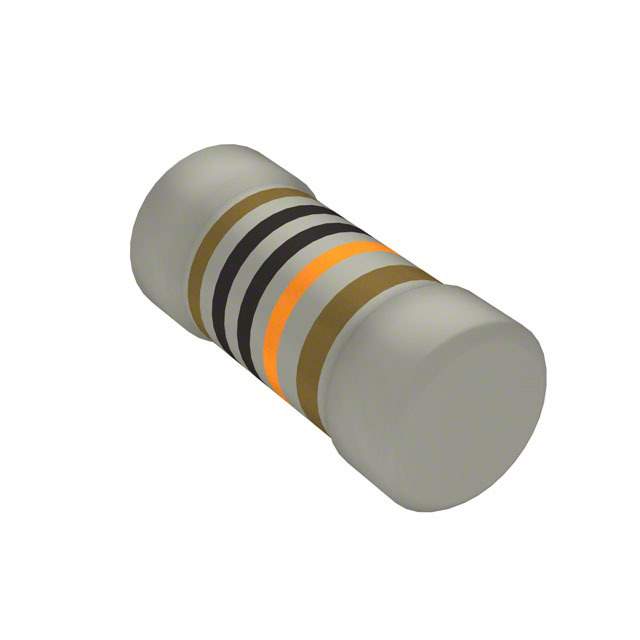

MMU01020C2202FB300 Real Image
Same model may have multiple batches, images only for reference.

MMU01020C2202FB300

Part No MMU01020C2202FB300
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 22K OHM 1% 0.3W 0102  /  22 kOhms ±1% 0.3W Chip Resistor MELF, 0102 Anti-Sulfur, Automotive AEC-Q200 Thin Film
Datasheet
MMU01020C2202FB300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Beyschlag/Draloric/BC Components
Series MMU - Professional
Package Tape & Reel
Resistance 22 kOhms
Tolerance ±1%
Power (Watts) 0.3W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case MELF, 0102
Supplier Device Package 0102
Ratings AEC-Q200
Dimension 0.043" Dia x 0.087" L (1.10mm x 2.20mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0040
Other Names MMU-22KCTR,MMU-22KCDKR,MMU-22KCCT
Standard Package 3,000
Win Source Part Number 967277-MMU01020C2202FB300
Ultra Librarian 3D Model Ultra Librarian MMU01020C2202FB300 CAD Model

Description

The Vishay MMU01020C2202FB300 is a chip resistor that has a resistance of 22 kOhms and a power rating of 0.3W.

  • Resistance: 22 kOhms
  • Power Rating: 0.3W
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Mounting: Surface Mountable
  • Package: MELF 0102
  • Series: MMU - Professional
  • MSL Level: 1 (unlimited)
  • HTSUS: 8533.21.0040
  • Alternative Part Numbers: SMM02040C2202FB300, SMM02040C2002FB300, and SMM02040C2212FB300
