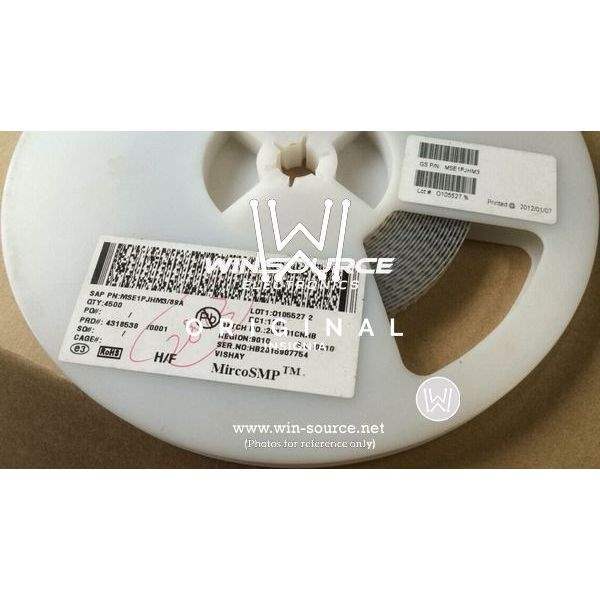

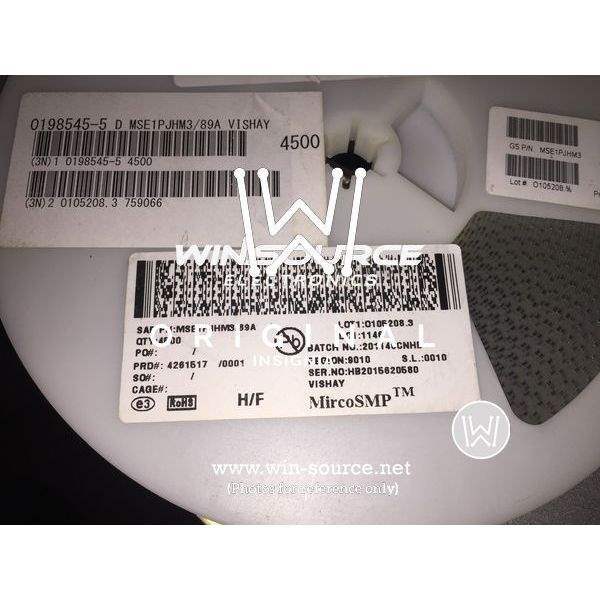

MSE1PJHM3-89A Vishay MSE1PJHM3-89A label picture MSE1PJHM3-89A label picture 2 MSE1PJHM3-89A real image
Same model may have multiple batches, images only for reference.
MSE1PJHM3-89A Vishay MSE1PJHM3-89A label picture MSE1PJHM3-89A label picture 2 MSE1PJHM3-89A real image
MSE1PJHM3-89A Vishay MSE1PJHM3-89A label picture MSE1PJHM3-89A label picture 2 MSE1PJHM3-89A real image
Same model may have multiple batches, images only for reference.

MSE1PJHM3-89A

Part No MSE1PJHM3-89A
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 600V 1A MICROSMP
Datasheet
MSE1PJHM3-89A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 1A
Speed(Frequency) Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 780ns
Current - Reverse Leakage @ Vr 1μA @ 600V
Capacitance @ Vr, F 5pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package MicroSMP
Operating Temperature - Junction -55°C to 175°C
Win Source Part Number 059561-MSE1PJHM3-89A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MSE1PJHM3-89A CAD Model

Description

The Vishay MSE1PJHM3-89A is a diode that is suitable for a variety of applications.

  • Manufacturer: Vishay
  • Availability: Available through Win Source
  • Part Number: 059561-MSE1PJHM3-89A
  • Supply and Demand Status: Balanced
