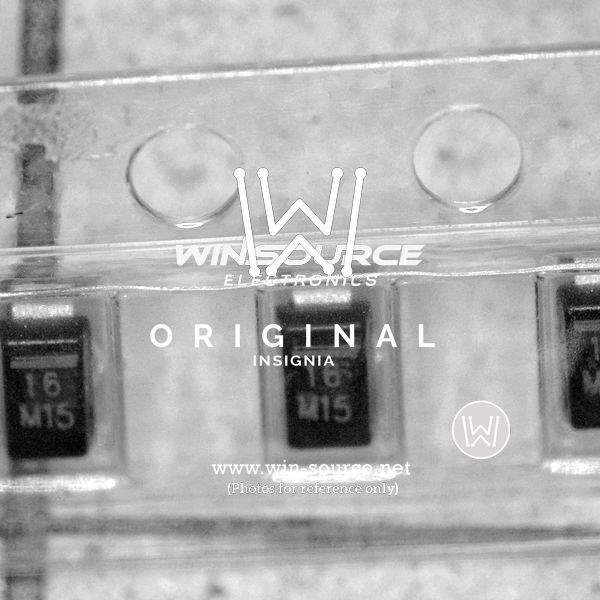

MSS1P6-M3/89A Real Image MSS1P6-M3/89A real image3704
Same model may have multiple batches, images only for reference.
MSS1P6-M3/89A Real Image MSS1P6-M3/89A real image3704
MSS1P6-M3/89A Real Image MSS1P6-M3/89A real image3704
Same model may have multiple batches, images only for reference.

MSS1P6-M3/89A

Part No MSS1P6-M3/89A
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 60V 1A MICROSMP
Datasheet
MSS1P6-M3/89A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 60V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 680mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 150μA @ 60V
Capacitance @ Vr, F 40pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package MicroSMP
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 059619-MSS1P6-M3/89A
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Power Management, Commercial, Automotive, Industrial
Ultra Librarian 3D Model Ultra Librarian MSS1P6-M3/89A CAD Model

Description

The Vishay MSS1P6-M3/89A is a Schottky diode used in power management, commercial, automotive, and industrial applications.

  • Case/Package: MicroSMP
  • Maximum DC Reverse Voltage: 60V
  • Average Rectified Current: 1A
  • Forward Voltage: 680mV @ 1A
  • Reverse Leakage Current: 150μA @ 60V
  • Capacitance: 40pF @ 4V, 1MHz
  • Operating Temperature Range: -55°C to 150°C
  • Supply and Demand: Limited
