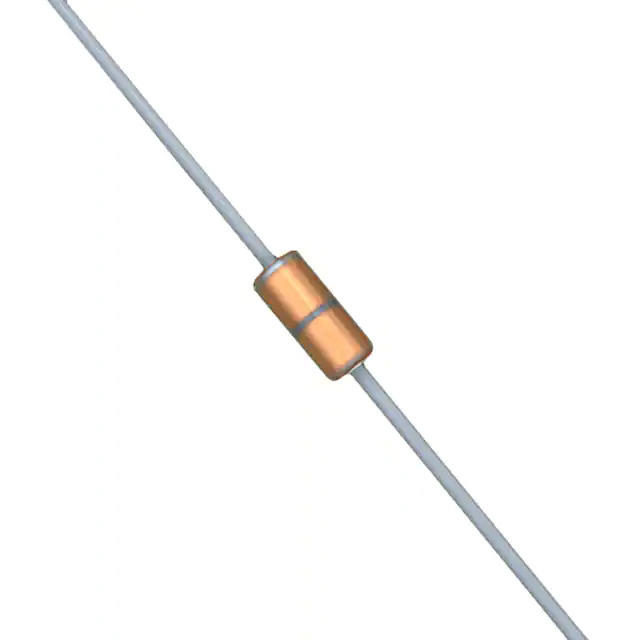

NTCLG100E2104JB

Part No NTCLG100E2104JB
Manufacturer Vishay
Catalog Temperature Sensors - NTC Thermistors
Description THERM NTC 100KOHM 3997K DO35
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Temperature Sensors - NTC Thermistors
Mfr Vishay Beyschlag/Draloric/BC Components
Series -
Package Bulk
Product Status Active
Resistance in Ohms @ 25°C 100k
Resistance Tolerance ±5%
B Value Tolerance ±1.3%
B0/50 -
B25/50 -
B25/75 -
B25/85 3997K
B25/100 -
Temperature Range - Operating -40°C ~ 200°C
Power - Max 100 mW
Length - Lead Wire 1.00" (25.40mm)
Mounting Type Through Hole
Package / Case DO-204AH, DO-35, Axial
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1375797-NTCLG100E2104JB
Ultra Librarian 3D Model Ultra Librarian NTCLG100E2104JB CAD Model

Description

The NTCLG100E2104JB is an active NTC thermistor temperature sensor manufactured by Vishay Beyschlag/Draloric/BC Components.

  • Package: DO-204AH, DO-35, axial
  • Mounting: Through-hole
  • Temperature Range: -40°C to 200°C
  • Maximum Power: 100mW
  • Resistance @ 25°C: 100kΩ with a tolerance of ±5%
  • B25/85 Value: 3997K
  • Lead Wire Length: 1.00" (25.40mm)
