Same model may have multiple batches, images only for reference.

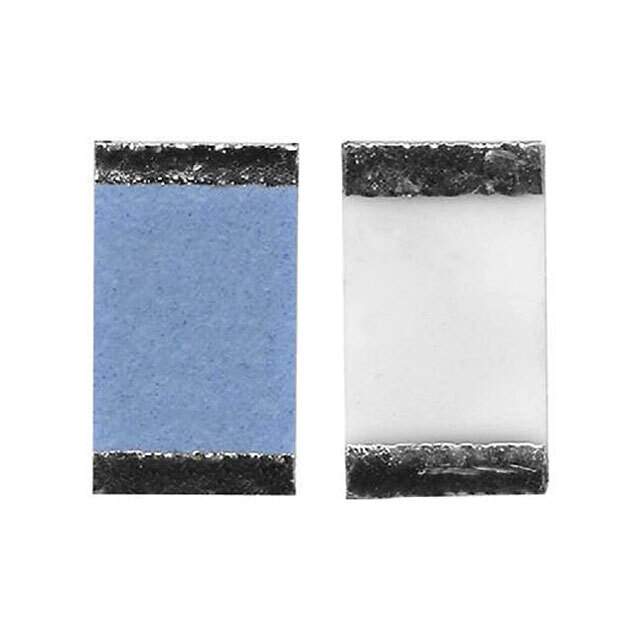

PEP0603Y1000BNTA Real Image
Same model may have multiple batches, images only for reference.

PEP0603Y1000BNTA

Part No PEP0603Y1000BNTA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description PEP0603 10PPM/C 100R 0.1% N TA / 100 Ohms ±0.1% 0.32W Chip Resistor 0603 (1608 Metric) Anti-Sulfur Thin Film
Datasheet
PEP0603Y1000BNTA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Sfernice
Series PEP
Package Tape & Reel (TR),Cut Tape (CT)
Resistance 100 Ohms
Tolerance ±0.1%
Power (Watts) 0.32W
Composition Thin Film
Features Anti-Sulfur
Temperature Coefficient ±10ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Dimension 0.060" L x 0.033" W (1.52mm x 0.85mm)
Height - Seated (Max) 0.025" (0.63mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names 716-PEP0603Y1000BNTACT,716-PEP0603Y1000BNTATR
Standard Package 100
Win Source Part Number 1004720-PEP0603Y1000BNTA
Ultra Librarian 3D Model Ultra Librarian PEP0603Y1000BNTA CAD Model

Description

The PEP series chip resistor is a thin film resistor with a resistance of 100 Ohms and a power rating of 0.32W. It is manufactured by Vishay Sfernice.

  • Resistance: 100 Ohms
  • Power Rating: 0.32W
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±10ppm/°C
  • Feature: Anti-sulfur
  • Operating Temperature: -55°C to 155°C
  • Package: 0603 (1608 Metric)
  • Packaging: Tape and reel (TR) or cut tape (CT)
  • Height Seated: 0.025" (0.63mm)
  • Terminations: 2
