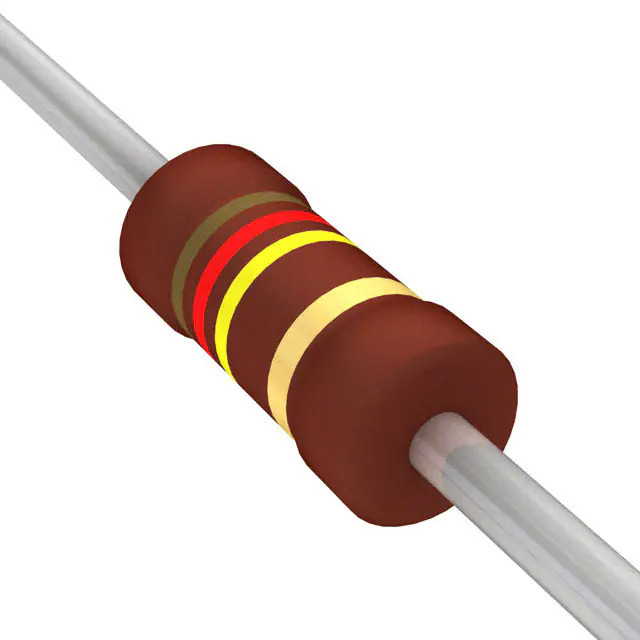

Same model may have multiple batches, images only for reference.

PR03000201203JAC00

Name: PR03000201203JAC00
Brand: Vishay
SKU: 1374941
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PR03000201203JAC00
Manufacturer	Vishay
Catalog	Through Hole Resistors
Description	RES 120K OHM 3W 5% AXIAL
Datasheet	PR03000201203JAC00 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors - Through Hole Resistors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	PR03
Product Status	Active
Resistance	120 kOhms
Tolerance	±5%
Power (Watts)	3W
Composition	Metal Film
Features	Flame Retardant Coating, Safety
Temperature Coefficient	±250ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Package / Case	Axial
Supplier Device Package	Axial
Size / Dimension	0.205" Dia x 0.657" L (5.20mm x 16.70mm)
Height - Seated (Max)	-
Number of Terminations	2
Failure Rate	-
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0090
Win Source Part Number	1374941-PR03000201203JAC00
Ultra Librarian 3D Model	Ultra Librarian PR03000201203JAC00 CAD Model

Alternative Products

Description

The Vishay Beyschlag/Draloric/BC Components PR03 series is a range of through-hole resistors designed for various applications.

Resistance: 120 kOhms
Power Rating: 3W
Composition: Metal Film
Tolerance: ±5%
Temperature Coefficient: ±250ppm/°C
Operating Temperature: -55°C to 155°C
Package: Axial
Size: 0.205" Dia x 0.657" L
Coating: Flame Retardant
REACH: Unaffected
ECCN: EAR99
