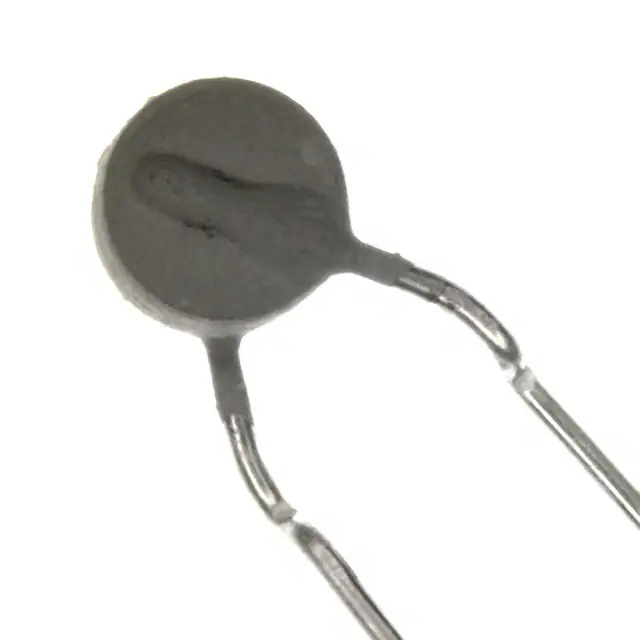

PTCCL05H190HBE Vishay
Same model may have multiple batches, images only for reference.

PTCCL05H190HBE

Part No PTCCL05H190HBE
Manufacturer Vishay
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 265V 19MA RADIAL
Datasheet
PTCCL05H190HBE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Vishay Beyschlag/Draloric/BC Components
Series PTCCL - 265V
Package Bulk
Product Status Active
Type Ceramic
Voltage - Max 265V
Current - Hold (Ih) (Max) 19 mA
Current - Trip (It) 29 mA
Current - Max 140 mA
Resistance - 25°C (Typ) 1.2 kOhms
Temperature Range - Operating 0°C ~ 70°C
Ratings -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.197" Dia x 0.217" T (5.00mm x 5.50mm)
Height - Seated (Max) 0.394" (10.00mm)
Thickness (Max) -
Lead Spacing 0.197" (5.00mm)
Approval Agency UR
Base Product Number PTCCL
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1375678-PTCCL05H190HBE
Ultra Librarian 3D Model Ultra Librarian PTCCL05H190HBE CAD Model

Description

The PTCCL05H190HBE is a ceramic PTC resettable fuse from Vishay Beyschlag/Draloric/BC Components.

  • Operating Temperature: 0°C to 70°C
  • Voltage Rating: 265V
  • Current Rating: 140mA
  • Trip Current: 29mA
  • Package: Radial, Disc
  • Lead Spacing: 0.197" (5.00mm)
  • Application: Circuit Protection
  • Features: Flame Retardant, Automotive AEC-Q200 Compliant, Safety
