Same model may have multiple batches, images only for reference.

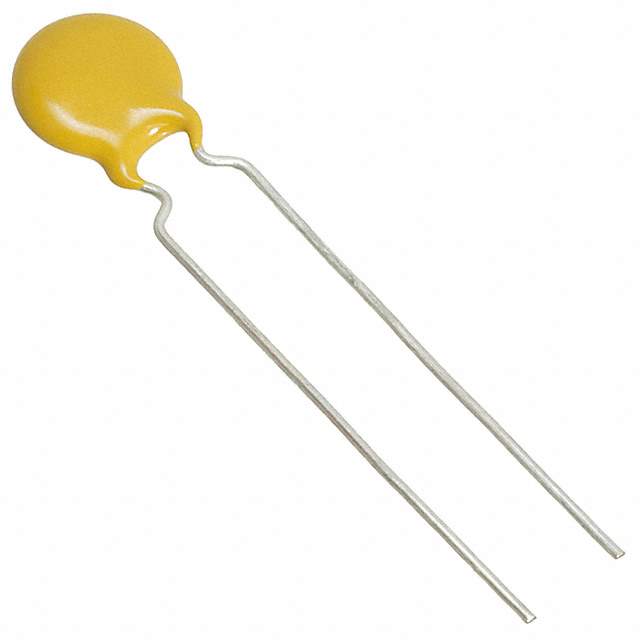

S220K25SL0N6TJ5R Real Image
Same model may have multiple batches, images only for reference.

S220K25SL0N6TJ5R

Part No S220K25SL0N6TJ5R
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 22PF 1KV SL RADIAL / 22 pF ±10% 1000V (1kV) Ceramic Capacitor SL Radial, Disc
Datasheet
S220K25SL0N6TJ5R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series S
Package Tape & Reel (TR)
Capacitance 22 pF
Tolerance ±10%
Voltage - Rated 1000V (1kV)
Temperature Coefficient SL
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.256" Dia (6.50mm)
Lead Spacing 0.197" (5.00mm)
Lead Style Straight
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.23.0060
Standard Package 2,000
Win Source Part Number 984607-S220K25SL0N6TJ5R
Ultra Librarian 3D Model Ultra Librarian S220K25SL0N6TJ5R CAD Model

Description

The Vishay S220K25SL0N6TJ5R is a ceramic capacitor with a capacitance of 22 pF and a voltage rating of 1000V (1kV).

  • Capacitance: 22 pF
  • Voltage Rating: 1000V (1kV)
  • Mounting: Through-hole
  • Package Type: Radial, disc
  • Packaging: Tape & reel
  • Series: S series
  • Category: Ceramic capacitor
  • Tolerance: ±10%
  • Temperature Coefficient: SL
  • Applications: Widely used in power supplies, lighting, and high-frequency circuits.
