Same model may have multiple batches, images only for reference.

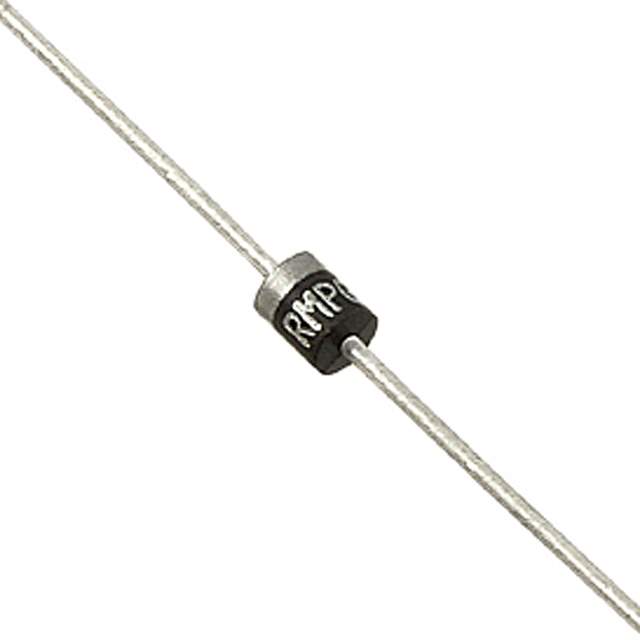

SB030-E3/54 Real Image
Same model may have multiple batches, images only for reference.

SB030-E3/54

Part No SB030-E3/54
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Datasheet
SB030-E3/54 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Vishay General Semiconductor - Diodes Division
Package Tape & Reel (TR)
Product Status Obsolete
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 600mA
Voltage - Forward (Vf) (Max) @ If 550 mV @ 600 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 30 V
Mounting Type Through Hole
Package / Case MPG06, Axial
Supplier Device Package MPG06
Operating Temperature - Junction -65°C ~ 125°C
Base Product Number SB030
Standard Package 5,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1281605-SB030-E3/54
Ultra Librarian 3D Model Ultra Librarian SB030-E3/54 CAD Model

Description

The Vishay SB030 Schottky diode is a fast recovery diode with a current rating of 600mA and a maximum reverse voltage of 30V.

  • Current Rating: 600mA
  • Maximum Reverse Voltage: 30V
  • Forward Voltage: 550mV @ 600mA
  • Reverse Leakage Current: 500μA @ 30V
  • Package: Axial MPG06 package
  • Operating Temperature Range: -65°C to 125°C
  • Ideal for: Rectifier applications where fast switching speeds are required
