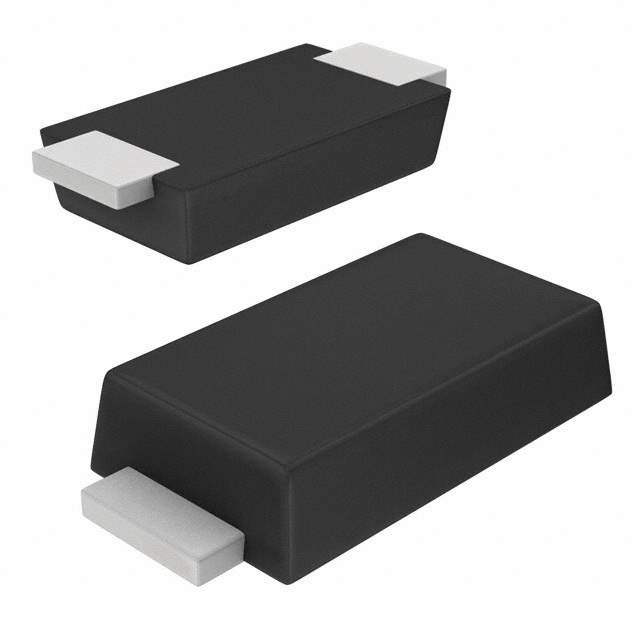

The SE20AFJHM3/6A is a surface-mount Ultrafast Rectifier from Vishay Semiconductors. This device is designed to provide efficient rectification and switching performance in high-frequency applications. Its ultrafast recovery time minimizes power loss and improves efficiency in circuits requiring rapid switching.

Applications:

• High-frequency inverters for power conversion
• Freewheeling diodes in motor control circuits
• Power factor correction (PFC) circuits in power supplies
• Snubber diodes in switching power supplies
• Output rectification in high-frequency SMPS (Switched-Mode Power Supplies)
• Solar inverters for efficient energy conversion

Features:

• Ultrafast reverse recovery time for efficient switching
• Low forward voltage drop for reduced power dissipation
• High surge current capability for robust performance
• Surface-mount package for automated assembly
• High junction temperature capability for reliable operation
• RoHS compliant for environmental protection
• Glass passivated chip junction

Benefits:

• Improved efficiency in power conversion due to minimized switching losses
• Reduced heat generation in circuits due to low forward voltage drop
• Reliable operation under surge conditions
• Simplified assembly process with surface-mount packaging
• Suitable for high-temperature environments
• Environmentally friendly

Additional Details:

The SE20AFJHM3/6A features an ultrafast reverse recovery time, typically in the nanosecond range, which significantly reduces switching losses and improves the overall efficiency of the circuit. The low forward voltage drop minimizes power dissipation and reduces heat generation, allowing for higher power densities. The high surge current capability ensures robust performance under transient conditions. The device is housed in a surface-mount package, facilitating automated assembly processes and reducing manufacturing costs. The high junction temperature capability allows for reliable operation in demanding environments. The glass-passivated chip junction provides excellent stability and reliability. This rectifier is commonly used in power supplies, inverters, and other high-frequency applications where efficiency and reliability are critical. The maximum repetitive peak reverse voltage is specified in the datasheet, and this parameter should be carefully considered when designing the circuit.
