Same model may have multiple batches, images only for reference.

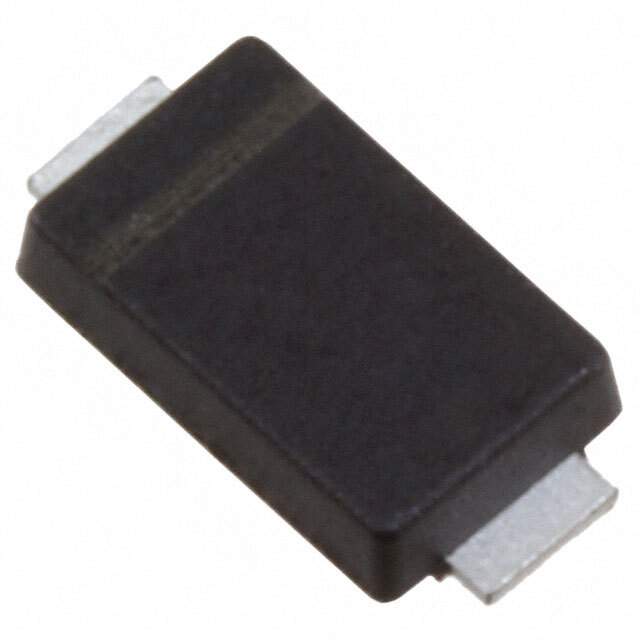

SE50PAJHM3/I Real Image
Same model may have multiple batches, images only for reference.

SE50PAJHM3/I

Part No SE50PAJHM3/I
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Datasheet
SE50PAJHM3/I Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Vishay General Semiconductor - Diodes Division
Series Automotive, AEC-Q101, eSMP®
Package Tape & Reel
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Max) @ If 1.16 V @ 5 A
Speed Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 2 µs
Current - Reverse Leakage @ Vr 10 µA @ 600 V
Capacitance @ Vr, F 32pF @ 4V, 1MHz
Mounting SMD (SMT)
Package / Case DO-221BC, SMA Flat Leads Exposed Pad
Supplier Device Package DO-221BC (SMPA)
Operating Temperature - Junction -55°C ~ 175°C
Base Product Number SE50
Other Names SE50PAJHM3/I,SE50PAJHM3/IGICT,SE50PAJHM3/IGIDKR,SE50PAJHM3/IGITR
Standard Package 14,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1281519-SE50PAJHM3/I
Ultra Librarian 3D Model Ultra Librarian SE50PAJHM3/I CAD Model

Description

The Vishay Rectifier Diode SE50PAJHM3/I is a high-performance diode designed for use in power applications.

  • Maximum Voltage Rating: 600V
  • Current Rating: 5A
  • Package: DO-221BC (SMPA)
  • Recovery Times: Standard (greater than 500ns)
  • Reverse Current: 10µA @ 600V
  • Family: SE50 family
  • Category: Discrete semiconductor product
  • Packaging: Tape and reel
  • Quantity per package: 14000
