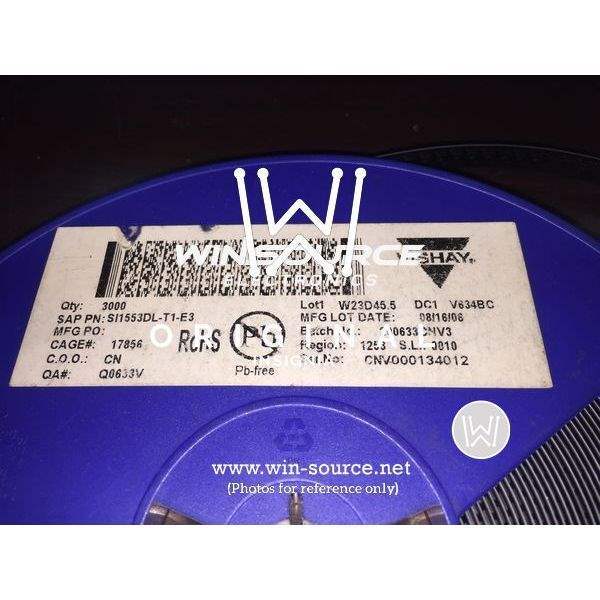

SI1553DL-T1 Vishay SI1553DL-T1 Real Image SI1553DL-T1 label picture 2 SI1553DL-T1 label picture 3 SI1553DL-T1 label picture 4 SI1553DL-T1 label picture 5 SI1553DL-T1 label picture 6 SI1553DL-T1 label picture 7 SI1553DL-T1 label picture 8 SI1553DL-T1 real image SI1553DL-T1 real image 2 SI1553DL-T1 real image 3 SI1553DL-T1 real image 4 SI1553DL-T1 real image 5

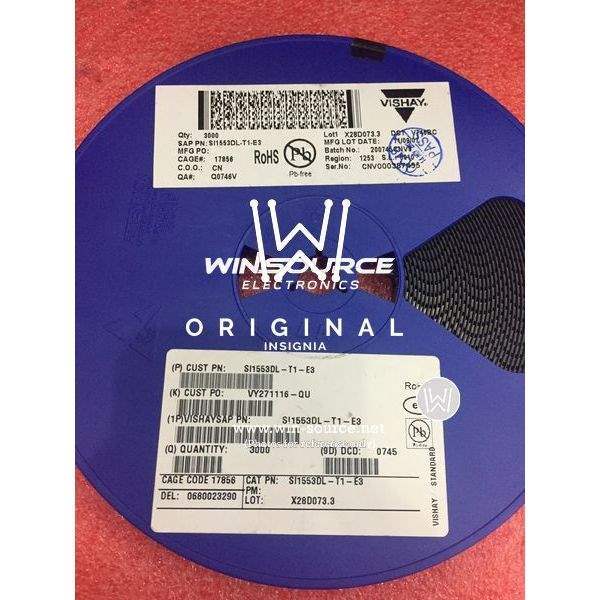

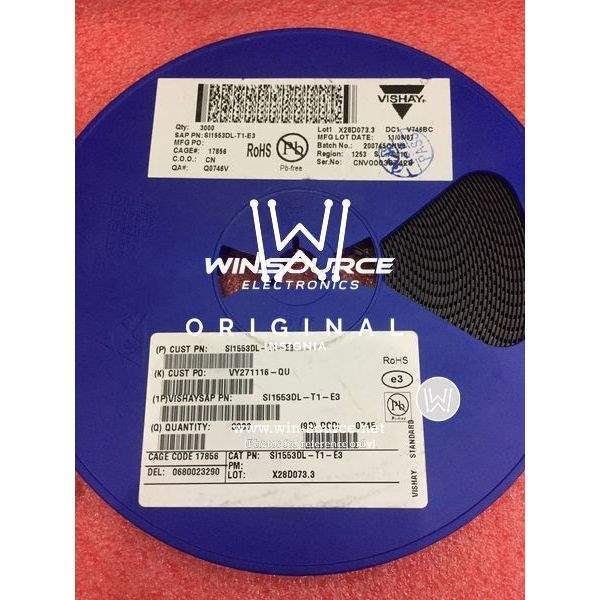

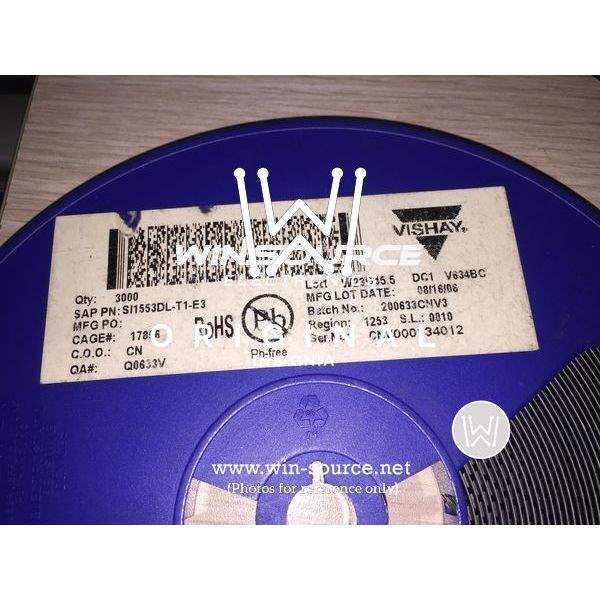

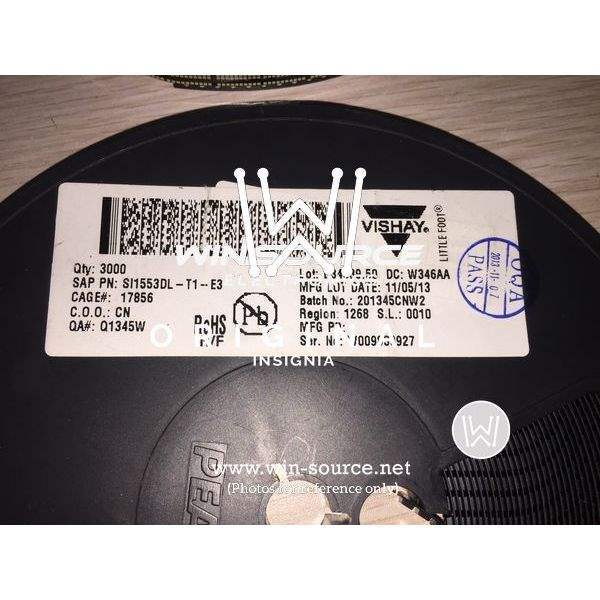

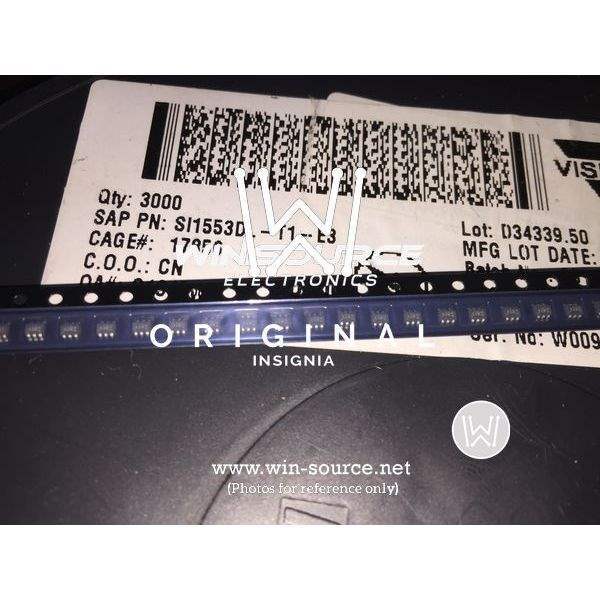

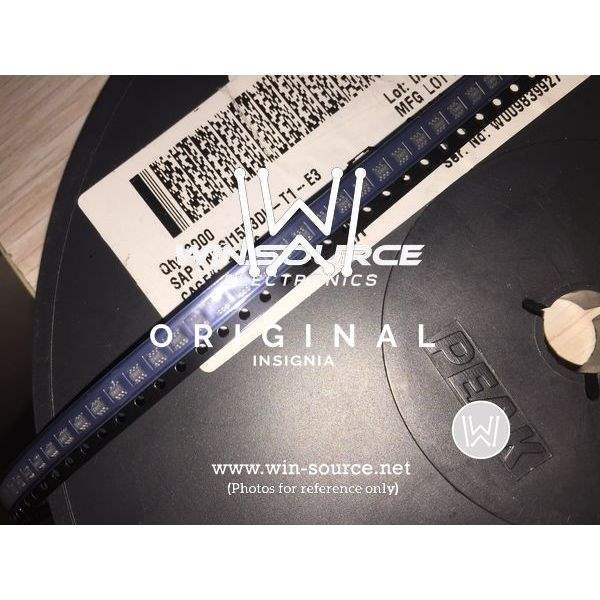

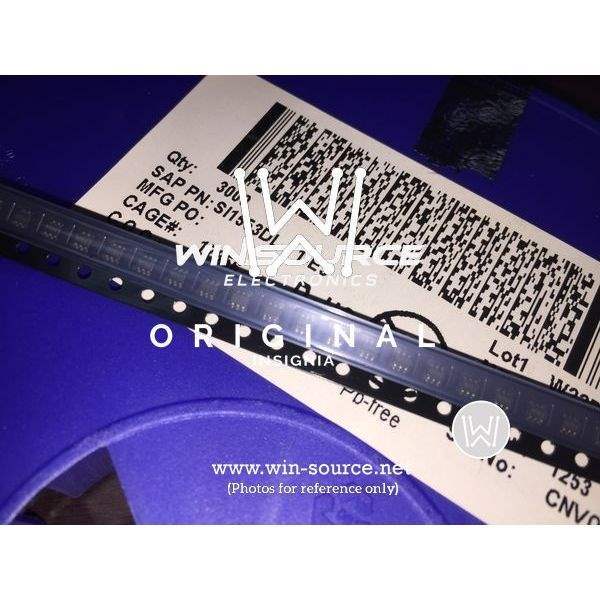

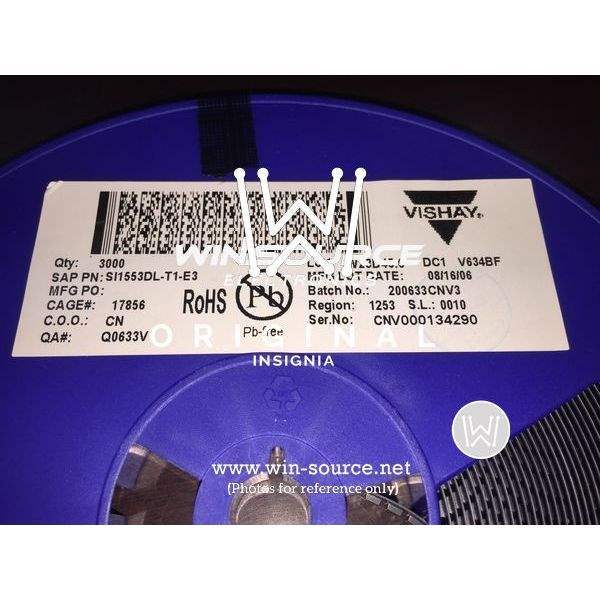

Same model may have multiple batches, images only for reference.
SI1553DL-T1 Vishay SI1553DL-T1 Real Image SI1553DL-T1 label picture 2 SI1553DL-T1 label picture 3 SI1553DL-T1 label picture 4 SI1553DL-T1 label picture 5 SI1553DL-T1 label picture 6 SI1553DL-T1 label picture 7 SI1553DL-T1 label picture 8 SI1553DL-T1 real image SI1553DL-T1 real image 2 SI1553DL-T1 real image 3 SI1553DL-T1 real image 4 SI1553DL-T1 real image 5
SI1553DL-T1 Vishay SI1553DL-T1 Real Image SI1553DL-T1 label picture 2 SI1553DL-T1 label picture 3 SI1553DL-T1 label picture 4 SI1553DL-T1 label picture 5 SI1553DL-T1 label picture 6 SI1553DL-T1 label picture 7 SI1553DL-T1 label picture 8 SI1553DL-T1 real image SI1553DL-T1 real image 2 SI1553DL-T1 real image 3 SI1553DL-T1 real image 4 SI1553DL-T1 real image 5
Same model may have multiple batches, images only for reference.

SI1553DL-T1

Part No SI1553DL-T1
Manufacturer Vishay
Catalog FETs - Arrays
Description Trans MOSFET N/P-CH 20V 0.66A/0.41A 6-Pin SC-70 T/R / MOSFET N/P-CH 20V SC70-6
Datasheet
SI1553DL-T1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Siliconix
Packaging Tape and Reel
Status Obsolete
Transistor Polarity N and P-Channel
FET Feature Logic Level Gate
Vds - Drain-Source Breakdown Voltage 20V
Id - Continuous Drain Current 660mA, 410mA
Rds On (Maximum) at Id, Vgs 385mOhm at 660mA, 4.5V
Gate Source Voltage(th) (Maximum) at Id 600mV at 250μA (Minimum)
Gate Charge (Qg) (Maximum) at Vgs 1.2nC at 4.5V
Maximum Power 270mW
Temperature Range - Operating -55°C ~ 150°C
Mounting Style SMD
Manufacturer Package 6-TSSOP, SC-88, SOT-363
Supplier Device Package SC-70-6 (SOT-363)
Family Part Number SI1553
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Win Source Part Number 756532-SI1553DL-T1
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name Si1553DL
Introduction Date July 05, 2000
ECCN EAR99
Country of Origin China
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian SI1553DL-T1 CAD Model

Description

The SI1553DL-T1 is a logic level gate N and P-channel FET from Vishay Siliconix.

  • Family: Si1553DL
  • Mounting Technology: SMD
  • Supplier Device Package: SC-70-6 (SOT-363)
  • Packaging: Tape and Reel
  • Status: Obsolete
  • Estimated EOL Date: N/A
  • Operating Temperature: -55°C to 150°C
  • Maximum Power: 270mW
  • Vds - Drain-Source Breakdown Voltage: 20V
  • Id - Continuous Drain Current: 660mA, 410mA
  • Rds On (Maximum) @ Id, Vgs: 385mOhm @ 660mA, 4.5V
  • Gate Source Voltage(th) (Maximum) @ Id: 600mV @ 250μA (Minimum)
  • Gate Charge (Qg) (Maximum) @ Vgs: 1.2nC @ 4.5V
  • Input Capacitance (Ciss) (Maximum) @ Vds: Not provided
  • ECCN: EAR99
  • Usage: Common-used
  • Popularity: High popularity
  • Supply and Demand: Sufficient supply and demand status
