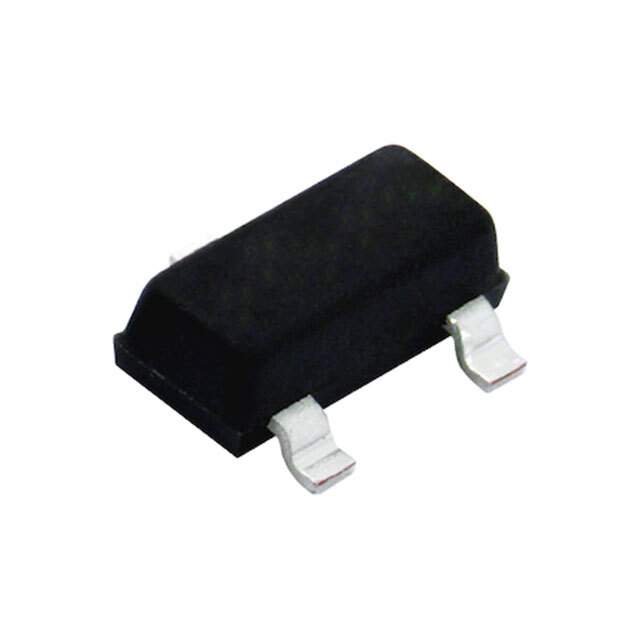

SI2328DS-T1-BE3 Real Image
Same model may have multiple batches, images only for reference.

SI2328DS-T1-BE3

Part No SI2328DS-T1-BE3
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description N-CHANNEL 100-V (D-S) MOSFET / N-Channel 100 V 1.15A (Ta) 730mW (Ta) Surface Mount SOT-23-3 (TO-236)
Datasheet
SI2328DS-T1-BE3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr Vishay Siliconix
Package Tape & Reel
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 100 V
Current - Continuous Drain (Id) @ 25°C 1.15A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 250mOhm @ 1.5A, 10V
Vgs(th) (Max) @ Id 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 5 nC @ 10 V
Vgs (Max) ±20V
Power Dissipation (Max) 730mW (Ta)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package SOT-23-3 (TO-236)
Package / Case TO-236-3, SC-59, SOT-23-3
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.21.0095
Win Source Part Number 1340932-SI2328DS-T1-BE3
Ultra Librarian 3D Model Ultra Librarian SI2328DS-T1-BE3 CAD Model

Description

This is a high-quality N-channel MOSFET that can be used in various applications. This MOSFET provided by an unlisted manufacturer offers a reliable solution.

  • Channel Type: N-Channel
  • Packaging: Tape and Reel
  • Standard Package: 3,000
  • Drain-to-Source Voltage (Vdss): 100V
  • Power Dissipation (Ta): 730mW
  • Gate Voltage (Vgs): ±20V
  • Operating Temperature (TJ): -55°C to 150°C
  • Mounting Type: Surface Mount
  • Package: TO-236-3, SC-59, SOT-23-3
  • Current Rating (Ta): 1.15A
  • Rds On (Max) @ Id, Vgs: 250mOhm @ 1.5A, 10V
