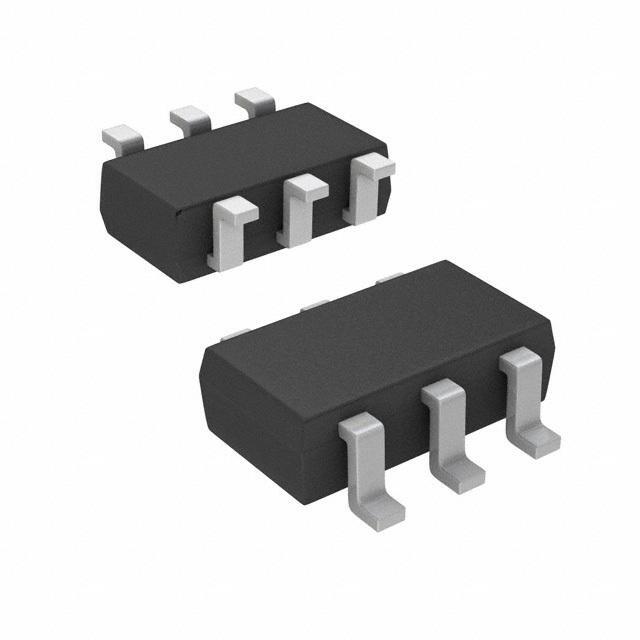

SI3434DV-T1 Vishay
Same model may have multiple batches, images only for reference.

SI3434DV-T1

Part No SI3434DV-T1
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 4.6A 6-TSOP
Datasheet
SI3434DV-T1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Obsolete(EOL)
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 4.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 2.5V, 4.5V
Gate-Source Threshold Voltage 600mV @ 1mA (Min)
Max Gate Charge 12nC @ 4.5V
Maximum Gate-Source Voltage ±12V
Power Dissipation (Max) 1.14W (Ta)
Maximum Rds On at Id,Vgs 34 mOhm @ 6.1A, 4.5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 6-TSOP
Dimension SOT-23-6 Thin, TSOT-23-6
Win Source Part Number 094895-SI3434DV-T1
Family Name Si3434DV
Introduction Date May 02, 2001
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian SI3434DV-T1 CAD Model

Description

The Si3434DV-T1 is an N-channel MOSFET designed for use in discrete semiconductor products and manufactured by Vishay.

  • Package: reel - TR
  • Power Dissipation: 1.14W
  • Continuous Drain Current @ 25°C: 4.6A
  • Drain-Source Breakdown Voltage: 30V
  • Gate-Source Threshold Voltage: 600mV @ 1mA
  • Maximum Gate-Source Voltage: ±12V
  • Maximum Rds On @ Id,Vgs: 34mOhm @ 6.1A, 4.5V
  • Mounting: surface mount technology
  • Operating Temperature Range: -55°C to 150°C
