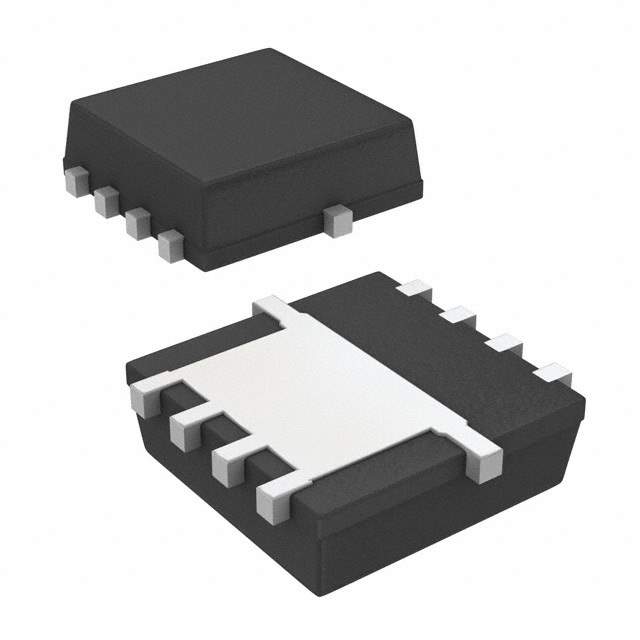

The SI7123DN is an N-Channel MOSFET from Vishay Siliconix, designed for high-efficiency power conversion and load switching applications. This MOSFET boasts a low on-resistance (RDS(on)), which minimizes conduction losses and enhances overall efficiency. Its optimized design makes it particularly well-suited for synchronous rectification, DC-DC converters, and power management systems where minimizing power dissipation is paramount. The SI7123DN is available in a PowerPAK® SO-8 package, which provides excellent thermal performance and a compact footprint for space-constrained applications.

Applications

• Synchronous Rectification
• DC-DC Converters
• Power Management Systems
• Load Switching
• Point-of-Load (POL) Converters

Features

• Low On-Resistance (RDS(on)): Minimizes conduction losses and improves efficiency.
• TrenchFET® Power MOSFET Technology: Delivers high power density and efficient switching.
• PowerPAK® SO-8 Package: Offers excellent thermal performance and a compact footprint.
• Low Gate Charge (Qg): Reduces switching losses.
• 100% Rg Tested: Ensures gate resistance is within specification.
• Halogen-Free According to IEC 61249-2-21 Definition: Complies with environmental standards.

Benefits

• High Efficiency: Low RDS(on) minimizes power losses, resulting in high efficiency.
• Improved Thermal Performance: PowerPAK® SO-8 package enhances heat dissipation.
• Compact Design: Small footprint allows for dense board designs.
• Reliable Operation: Robust design ensures reliable performance in demanding applications.
• Reduced Power Dissipation: Low gate charge reduces switching losses.

Additional Details

The SI7123DN is characterized by a drain-source voltage (VDS) rating and a continuous drain current (ID) rating that is dependent on the case temperature. The gate-source voltage (VGS) typically has a specified maximum rating. It's crucial to consult the Vishay datasheet for precise values and derating curves under different operating conditions. The PowerPAK® SO-8 package enables efficient heat transfer, but proper thermal management techniques, such as heat sinking or adequate PCB copper area, may still be required to maintain optimal performance and reliability. Before incorporating the SI7123DN into a design, it's essential to refer to the latest Vishay datasheet for the most accurate and up-to-date specifications, application notes, and design recommendations. The datasheet contains critical information regarding gate drive requirements, switching characteristics, safe operating area (SOA), and other vital parameters. Proper PCB layout practices, including minimizing parasitic inductance and capacitance, are crucial for achieving optimal switching performance and ensuring the device's long-term reliability. The SI7123DN combines low on-resistance, efficient switching, and a compact package to provide a versatile and high-performance solution for various power conversion and management applications. Its compliance with environmental standards further enhances its suitability for modern electronic designs. Attention should be paid to the gate drive circuitry to ensure proper and efficient switching behavior, minimizing losses and maximizing overall system efficiency.
