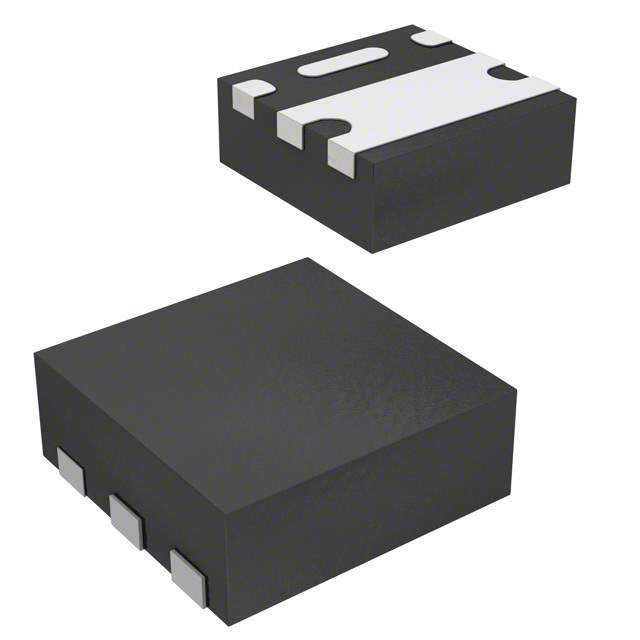

The Vishay SIA437DJ-T1-GE3 is a P-channel MOSFET with a Drain-Source Breakdown Voltage of 20V and Continuous Drain Current of 29.7A (Tc) @ 25°C.

• Drain-Source Breakdown Voltage: 20V
• Continuous Drain Current: 29.7A (Tc) @ 25°C
• Power Dissipation: 3.5W (Ta) and 19W (Tc)
• Mounting Type: SMD (SMT)
• Polarity: P-Channel
• Category: Discrete Semiconductor Products
• Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4.5V
• Gate-Source Threshold Voltage: 900mV @ 250μA
• Status: Active
• Operating Temperature: -50°C to 150°C (TJ)
• Case/Package: PowerPAK SC-70-6 Single
• Max Gate Charge: 90nC @ 8V
• Max Input Capacitance: 2340pF @ 10V
• Maximum Gate-Source Voltage: ±8V
• Maximum Rds On @ Id,Vgs: 14.5 mOhm @ 8A, 4.5V
• Supply and Demand Status: Balance
