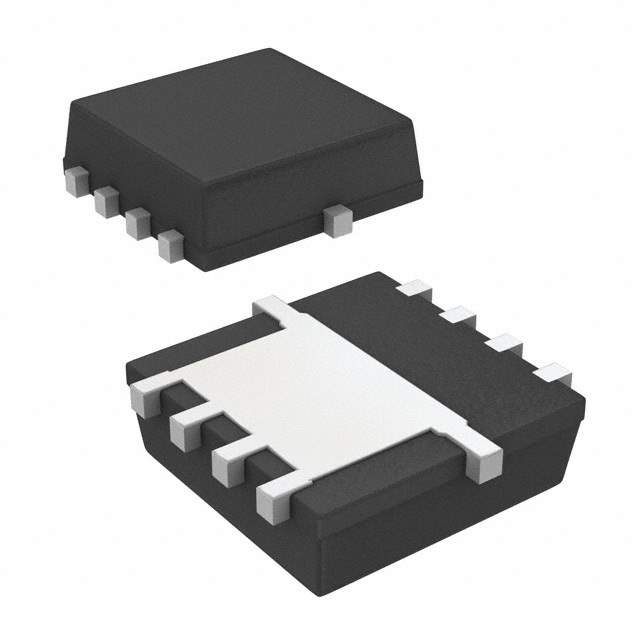

The Vishay 211731-SIS330 is a N-channel MOSFET with a drain-source breakdown voltage of 30V and a continuous drain current of 35A (Tc).

• Drain-Source Breakdown Voltage: 30V
• Continuous Drain Current: 35A (Tc)
• Maximum Rds On at Id, Vgs: 5.6 mOhm @ 10A, 10V
• Maximum Gate-Source Voltage: ±20V
• Gate-Source Threshold Voltage: 2.5V @ 250μA
• Maximum Gate Charge: 35nC @ 10V
• Maximum Input Capacitance: 1300pF @ 15V
• Power Dissipation: 3.7W (Ta), 52W (Tc)
• Temperature Range: -55°C to 150°C (TJ)
• Status: obsolete (EOL)
• Popularity: medium
