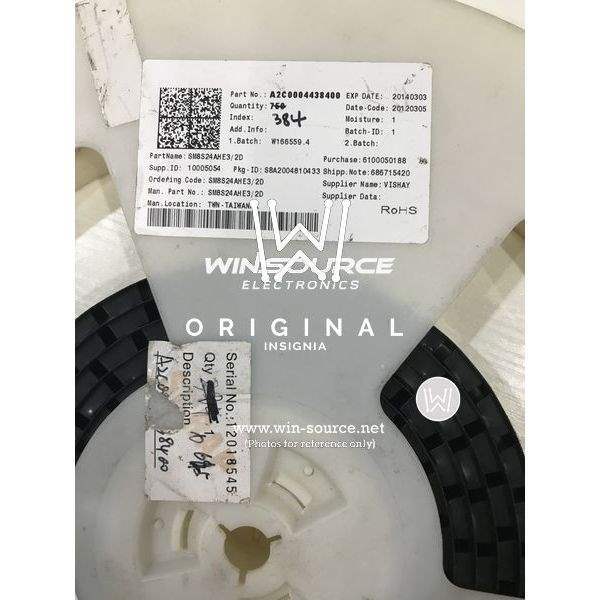

SM8S24AHE3/2D Vishay SM8S24AHE3/2D Real Image SM8S24AHE3/2D label picture
Same model may have multiple batches, images only for reference.
SM8S24AHE3/2D Vishay SM8S24AHE3/2D Real Image SM8S24AHE3/2D label picture
SM8S24AHE3/2D Vishay SM8S24AHE3/2D Real Image SM8S24AHE3/2D label picture
Same model may have multiple batches, images only for reference.

SM8S24AHE3/2D

Part No SM8S24AHE3/2D
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS Diode Single Uni-Dir 24V 6.6KW Automotive 2-Pin(1+Tab) DO-218AB T/R / TVS DIODE 24VWM 38.9VC DO218AB
Datasheet
SM8S24AHE3/2D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Reel - TR
Status Obsolete(EOL)
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 24V
Minimum Breakdown Voltage 26.7V
Max Clamping Voltage 38.9V
Peak Pulse Current(Ippm) 170A
Power Dissipation - Pd 6600W (6.6kW)
Applications Automotive
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting SMD (SMT)
Case / Package DO-218AB
Win Source Part Number 1097214-SM8S24AHE3/2D
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name SM8S24A
Introduction Date May 08, 2007
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian SM8S24AHE3/2D CAD Model

Description

The Vishay SM8S24AHE3/2D is a Zener type circuit protection electronic component manufactured by Vishay.

  • Product Name: SM8S24AHE3/2D
  • Manufacturer: Vishay
  • Power Dissipation: 6600W
  • Peak Pulse Current: 170A
  • Minimum Breakdown Voltage: 26.7V
  • Maximum Clamping Voltage: 38.9V
  • Stand-off Voltage: 24V
  • Channel: Unidirectional
  • Package: DO-218AB
  • Status: Obsolete
  • Popularity: High
  • Supply and Demand Status: Limited
  • Alternative Parts: SM8S24A-TP, SM8S24A-TP-HF, and ATV66SM824A-G
