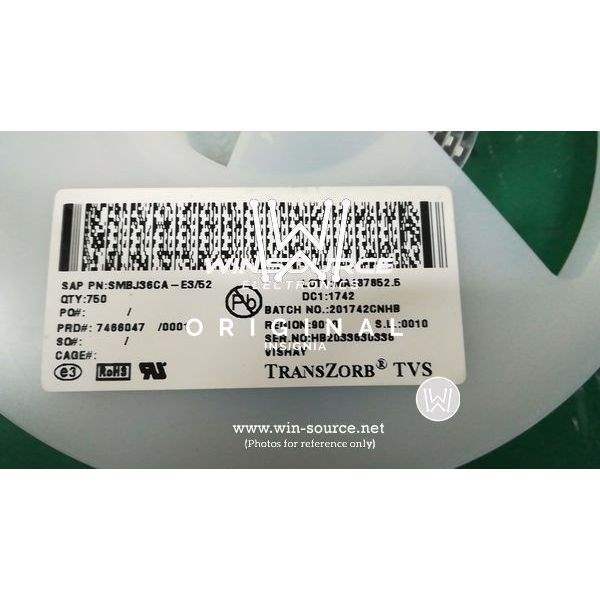

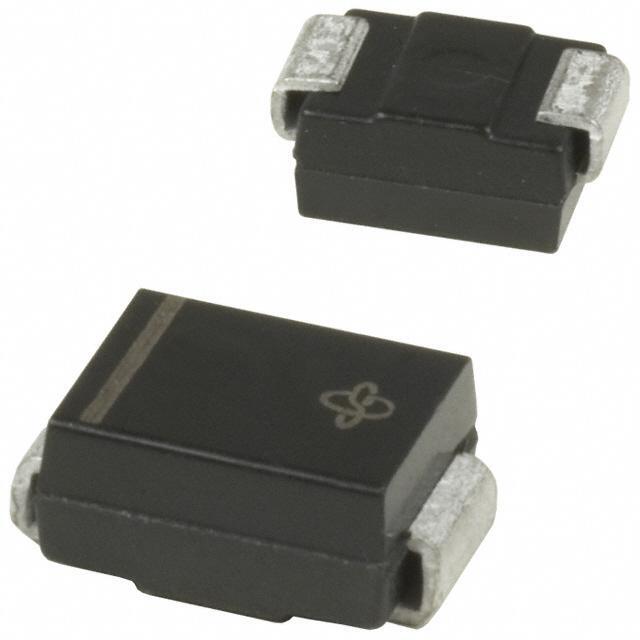

SMBJ36CA-E3/52 Vishay SMBJ36CA-E3/52 Real Image SMBJ36CA-E3/52 label picture
Same model may have multiple batches, images only for reference.
SMBJ36CA-E3/52 Vishay SMBJ36CA-E3/52 Real Image SMBJ36CA-E3/52 label picture
SMBJ36CA-E3/52 Vishay SMBJ36CA-E3/52 Real Image SMBJ36CA-E3/52 label picture
Same model may have multiple batches, images only for reference.

SMBJ36CA-E3/52

Part No SMBJ36CA-E3/52
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 36VWM 58.1VC SMB / TVS Diode Single Bi-Dir 36V 600W 2-Pin SMB T/R
Datasheet
SMBJ36CA-E3/52 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 36V
Minimum Breakdown Voltage 40V
Max Clamping Voltage 58.1V
Peak Pulse Current(Ippm) 10.3A
Power Dissipation - Pd 600W
Applications General Purpose
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package DO-214AA (SMBJ)
Win Source Part Number 029215-SMBJ36CA-E3/52
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Quantity per package 750
Family Name SMBJ36CA
Introduction Date July 04, 2006
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian SMBJ36CA-E3/52 CAD Model

Description

This Zener type electronic component is manufactured by Vishay and is used for general purpose applications.

  • Channel: bidirectional channel
  • Mounting: SMD (SMT) technology
  • Category: circuit protection
  • Status: currently active
  • Temperature Range: from -55°C to 150°C (TJ)
  • Case/Package: DO-214AA (SMBJ)
  • STAND-OFF Voltage (Vwm): 36V
  • Minimum Breakdown Voltage: 40V
  • Maximum Clamping Voltage: 58.1V
  • Peak Pulse Current(Ippm): 10.3A
  • Power Dissipation - Pd: 600W
  • Alternative Part (cross-reference): NDTV36VB600BTRF; SMBJ36CA; MSPSMBJ36CA
  • Introduction Date: July 04, 2006
  • ECCN: EAR99
  • Country of Origin: China
  • Estimated EOL Date: 2027
  • Compliance: halogen free and is compliant
  • Supply and Demand Status: sufficient
  • Package: 750
