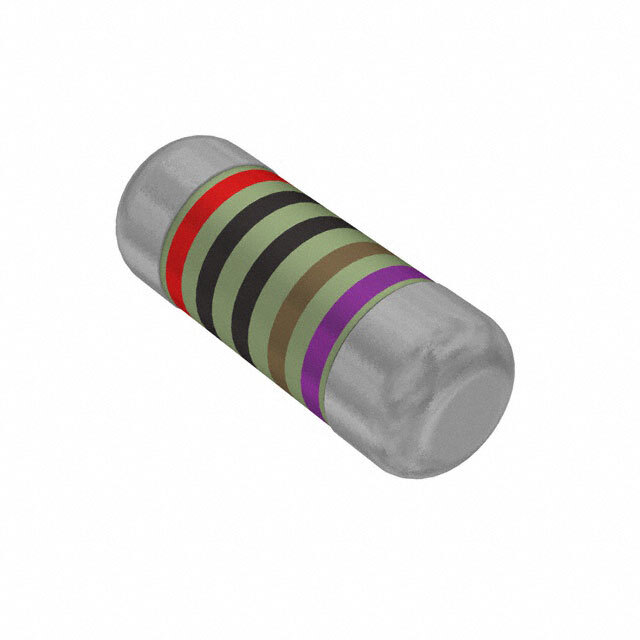

Same model may have multiple batches, images only for reference.
SMM02070C2209FBP00 Vishay – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SMM02070C2209FBP00

Part No SMM02070C2209FBP00
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 22 OHM 1% 1W MELF
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Resistance 22 Ohms
Tolerance ±1%
Power (Watts) 1W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package MELF, 0207
Supplier Device Package MELF
Size / Dimension 0.087" Dia x 0.228" L (2.20mm x 5.80mm)
Number of Terminations 2
Package Tape & Reel
Supply and Demand Status Limited
Win Source Part Number 1585026-SMM02070C2209FBP00
Ultra Librarian 3D Model Ultra Librarian SMM02070C2209FBP00 CAD Model
