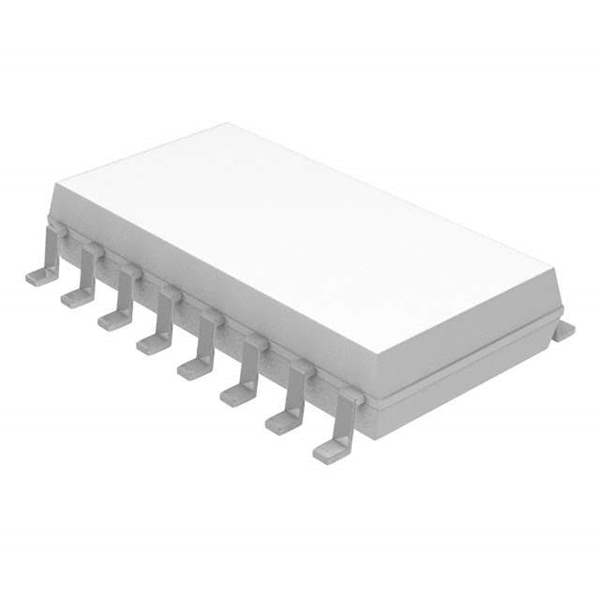

SOMC1603820RGEA Real Image
Same model may have multiple batches, images only for reference.

SOMC1603820RGEA

Part No SOMC1603820RGEA
Manufacturer Vishay
Catalog Resistor Networks, Arrays
Description RES ARRAY 8 RES 820 OHM 16SOIC
Datasheet
SOMC1603820RGEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Estimated Pruduction Lead Time 16 Weeks
Features 820 Ohm ±2% 160mW Power Per Element Isolated 8 Resistor Network/Array ±100ppm/°C 16-SOIC (0.220", 5.59mm Width)
Manufacturer Vishay
Series SOMC
Package Reel - TR
Operating Temperature Range -55°C ~ 150°C
Mounting Surface Mount
Package 16-SOIC (0.220", 5.59mm Width)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0010
Other Part Number SOMC820HTR, SOMC820HCT, SOMC820HDKR
Quantity per package 2000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 934689-SOMC1603820RGEA
Ultra Librarian 3D Model Ultra Librarian SOMC1603820RGEA CAD Model

Description

The SOMC1603820RGEA is a resistor network/array that consists of eight isolated 820 Ohm resistors by Vishay.

  • Resistance: 820 Ohm
  • Power Rating: 160mW per element
  • Tolerance: ±2%
  • Configuration: Isolated
  • Package: 16-SOIC
  • Mounting Type: Surface Mount
  • Temperature Range: -55°C to 150°C
