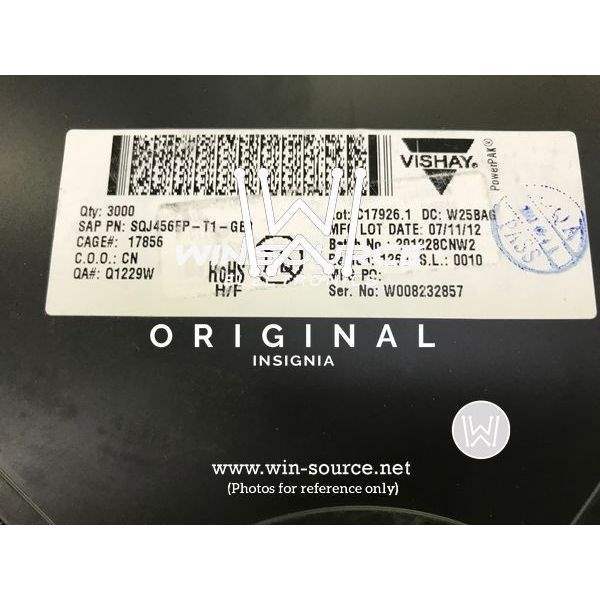

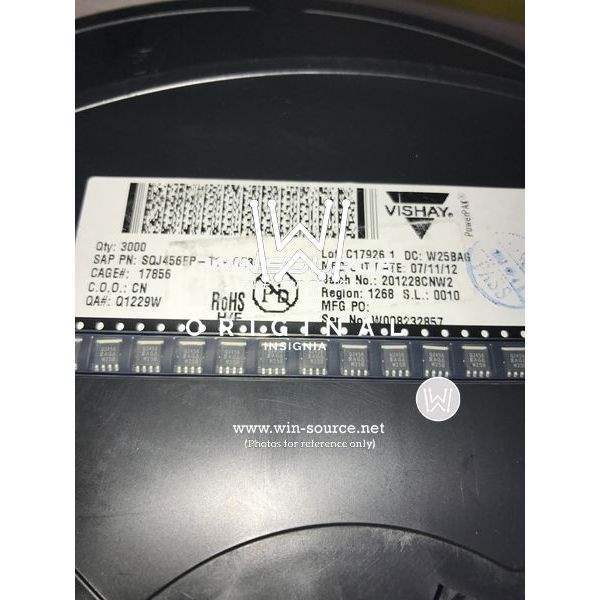

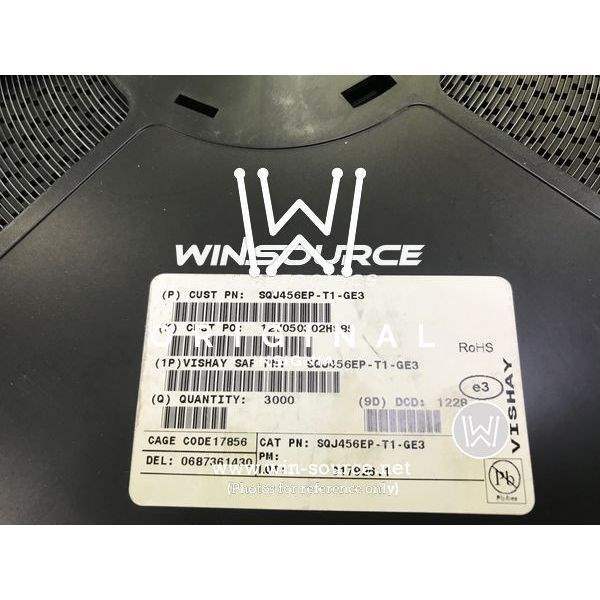

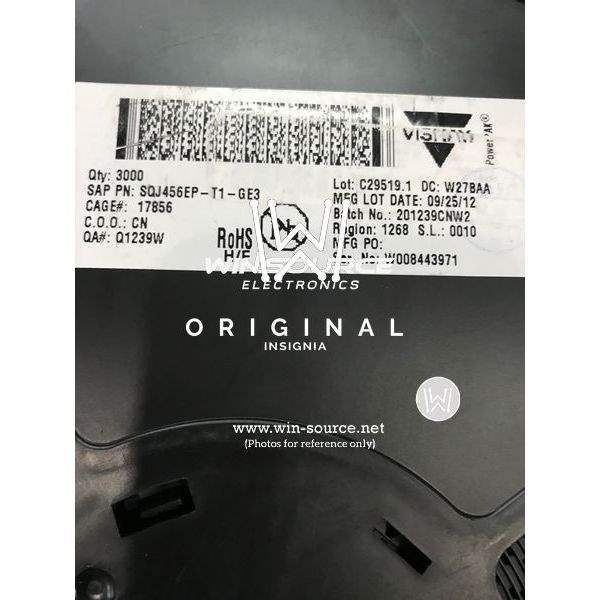

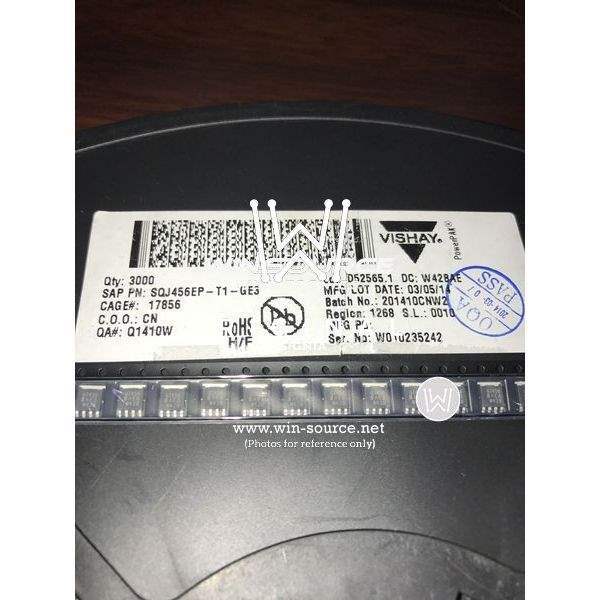

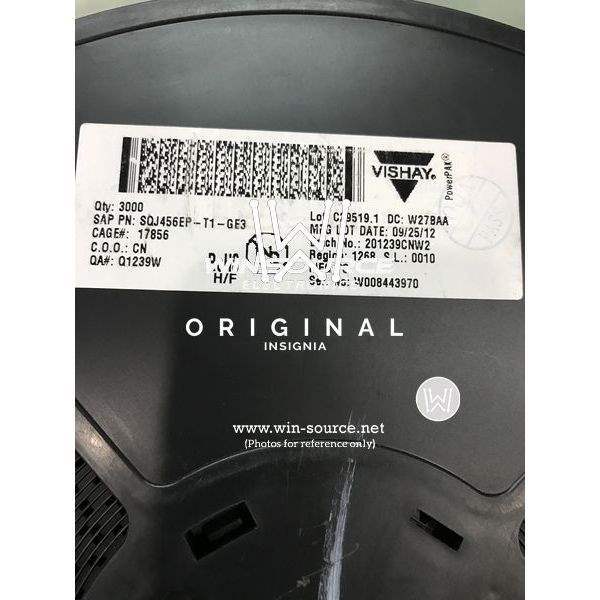

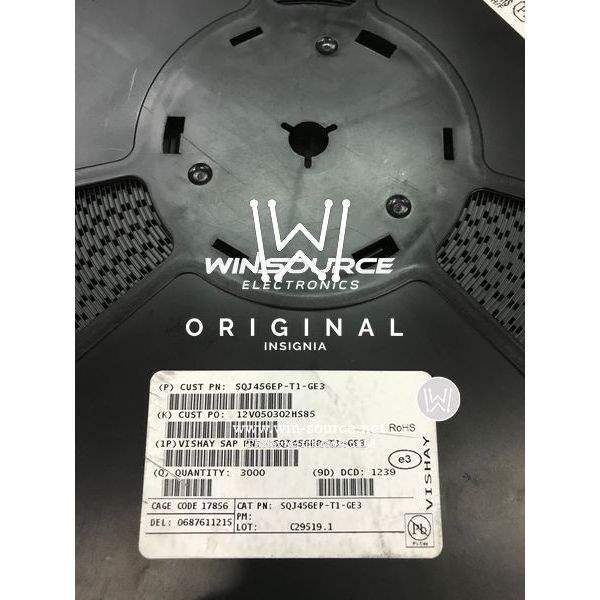

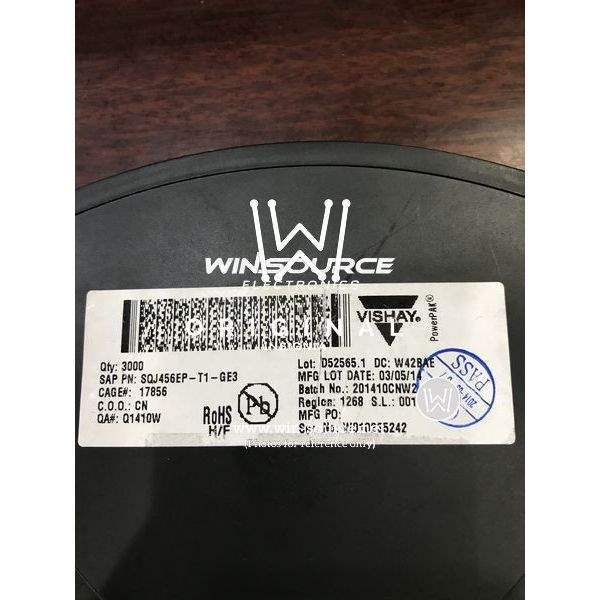

Same model may have multiple batches, images only for reference.

SQJ456EP-T1-GE3

Name: SQJ456EP-T1-GE3
Brand: Vishay
SKU: 339838
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SQJ456EP-T1-GE3
Manufacturer	Vishay
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 100V 32A PPAK SO-8 / Trans MOSFET N-CH 100V 32A Automotive 5-Pin(4+Tab) PowerPAK SO T/R
Datasheet	SQJ456EP-T1-GE3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Vishay
Packaging	Reel - TR
Status	Active
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	100V
Continuous Drain Current at 25°C	32A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Gate-Source Threshold Voltage	3.5V @ 250μA
Max Gate Charge	63nC @ 10V
Max Input Capacitance	3342pF @ 25V
Maximum Gate-Source Voltage	±20V
Power Dissipation (Max)	83W (Tc)
Maximum Rds On at Id,Vgs	26 mOhm @ 9.3A, 10V
Temperature Range - Operating	-55°C to 175°C (TJ)
Mounting	SMD (SMT)
Case / Package	PowerPAK SO-8
Dimension	PowerPAK SO-8
Win Source Part Number	042845-SQJ456EP-T1-GE3
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Family Name	SQJ456EP
Introduction Date	August 25, 2009
Halogen Free	Compliant
Estimated EOL Date	2022
Ultra Librarian 3D Model	Ultra Librarian SQJ456EP-T1-GE3 CAD Model

Alternative Products

Description

The Vishay SQJ456EP-T1-GE3 is an N-Channel MOSFET that is perfect for use in discrete semiconductor products.

Power Dissipation (max): 83W (Tc)
Family: SQJ456EP family
Drive Voltage (max Rds On, Min Rds On): 6V, 10V
Active Status: Active
Temperature Range: -55°C to 175°C (TJ)
Package: Reel - TR
Mounting: SMD (SMT)
MOSFET: High-quality, reliable and affordable
Popularity: High
