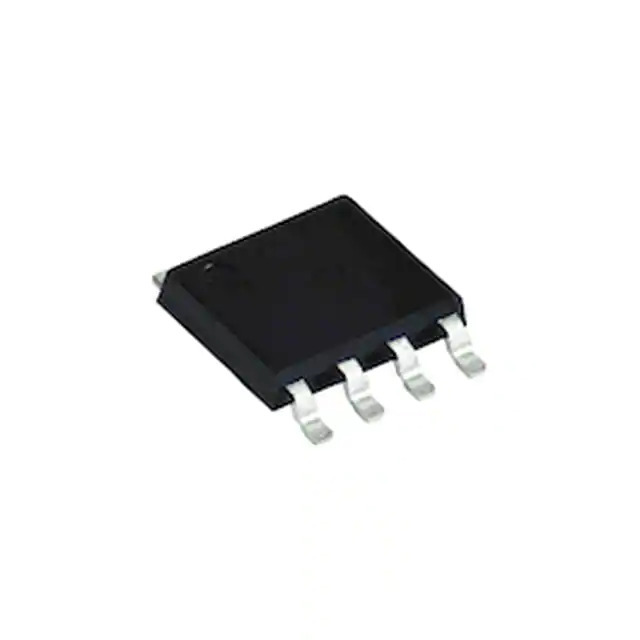

Same model may have multiple batches, images only for reference.
SQJA26EP-T1_GE3 Vishay
Same model may have multiple batches, images only for reference.

SQJA26EP-T1_GE3

Part No SQJA26EP-T1_GE3
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description AUTOMOTIVE N-CHANNEL 30 V (D-S) / N-Channel 30 V 410A (Tc) 500W (Tc) Surface Mount PowerPAK® SO-8
Datasheet
SQJA26EP-T1_GE3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr Vishay Siliconix
Series -
Package Tape & Reel
Product Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 410A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 0.77mOhm @ 15A, 10V
Vgs(th) (Max) @ Id 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 195 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 9778 pF @ 25 V
FET Feature -
Power Dissipation (Max) 500W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Surface Mount
Supplier Device Package PowerPAK® SO-8
Package / Case PowerPAK® SO-8
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1357302-SQJA26EP-T1_GE3
Ultra Librarian 3D Model Ultra Librarian SQJA26EP-T1_GE3 CAD Model

Description

The 1357302-SQJA26EP-T1_GE3 is a single N-channel MOSFET transistor from Vishay Siliconix.

  • Drain to Source Voltage (Vdss): 30V
  • Continuous Drain Current (Id) @ 25°C: 410A
  • On-Resistance: 0.77mOhm @ 15A and 10V
  • Gate Voltage (for maximum on-resistance): 4.5V
  • Gate Threshold Voltage: 2.5V
  • Gate Charge: 195nC @ 10V
  • Mounting Type: Surface Mount
  • Package: PowerPAK SO-8
  • Product Status: Active
  • ECCN: EAR99
