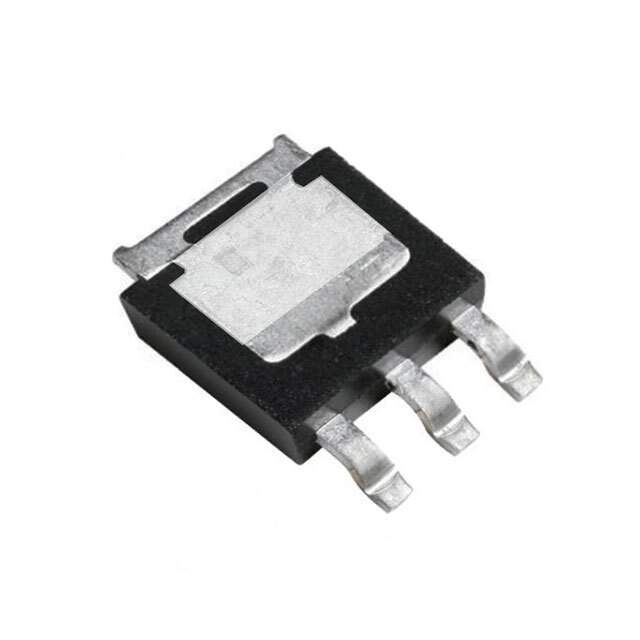

SQR40020ER_GE3

Name: SQR40020ER_GE3
Brand: Vishay
SKU: 1277853
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SQR40020ER_GE3
Manufacturer	Vishay
Catalog	Transistors - FETs, MOSFETs - RF
Datasheet	SQR40020ER_GE3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Vishay Siliconix
Series	Automotive, AEC-Q101, TrenchFET®
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2.33mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	3.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	130 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	8000 pF @ 25 V
Power Dissipation (Max)	107W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	TO-252 (DPAK) Reverse Lead
Package / Case	TO-252-4, DPak (3 Leads + Tab)
Base Product Number	SQR40020
Other Names	SQR40020ER_GE3CT,SQR40020ER_GE3DKR,SQR40020ER_GE3TR
Standard Package	2,000
MSL Level	1 (Unlimited)
ECCN	EAR99
Win Source Part Number	1277853-SQR40020ER_GE3
Ultra Librarian 3D Model	Ultra Librarian SQR40020ER_GE3 CAD Model

Alternative Products

Description

The Vishay SQR40020ER_GE3 is an N-channel MOSFET transistor with a Win Source Part Number of 1277853-SQR40020ER_GE3.

Mounting Technology: Surface Mount Technology (SMT)
Case/Package: TO-252-4, DPak (3 Leads + Tab)
Drain-Source Voltage (Vdss): 40V
Continuous Drain Current (Id): 100A @ 25°C
Rds On (Max) @ Id, Vgs: 2.33mOhm @ 20A, 10V
Vgs(th) (Max) @ Id: 3.5V @ 250μA
Power Dissipation: 107W
Gate Charge (Qg) (Max) @ Vgs: 130nC @ 10V
Popularity: High
Applications: Power management, automotive, and industrial
