Same model may have multiple batches, images only for reference.

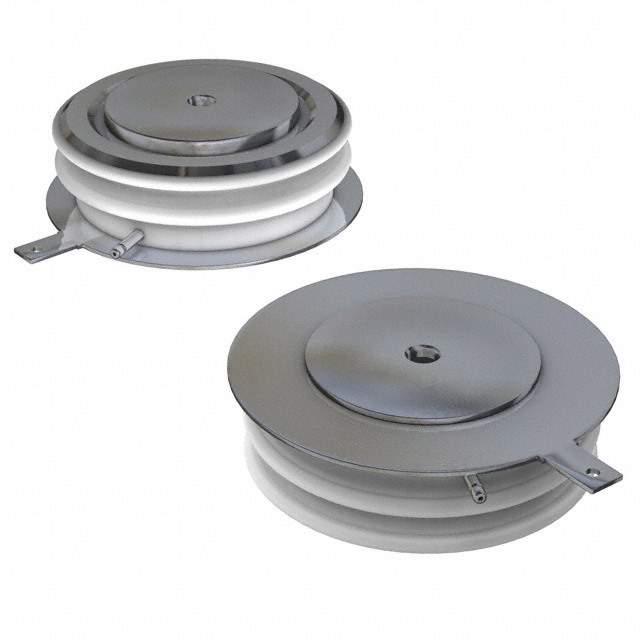

ST1000C12K0 Real Image
Same model may have multiple batches, images only for reference.

ST1000C12K0

Part No ST1000C12K0
Manufacturer Vishay
Catalog SCRs - Single
Datasheet
ST1000C12K0 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - SCRs
Mfr Vishay General Semiconductor - Diodes Division
Package Bulk
Product Status Obsolete
Voltage - Off State 1.2 kV
Voltage - Gate Trigger (Vgt) (Max) 3 V
Current - Gate Trigger (Igt) (Max) 200 mA
Voltage - On State (Vtm) (Max) 1.8 V
Current - On State (It (AV)) (Max) 1473 A
Current - On State (It (RMS)) (Max) 2913 A
Current - Hold (Ih) (Max) 600 mA
Current - Off State (Max) 100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 20A, 21.2A
SCR Type Standard Recovery
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Chassis Mount
Package / Case TO-200AC, K-PUK, A-24
Supplier Device Package A-24 (K-Puk)
Base Product Number ST1000
Other Names *ST1000C12K0
Standard Package 2
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
Win Source Part Number 1278743-ST1000C12K0
Ultra Librarian 3D Model Ultra Librarian ST1000C12K0 CAD Model

Description

The Vishay General Semiconductor - Diodes Division's ST1000C12K0 is a thyristor SCR type electronic component that is used for various applications.

  • Mounting Type: chassis mount
  • Voltage - Off State: 1.2 kV
  • Voltage - Gate Trigger (Vgt) (Max): 3 V
  • Current - Hold (Ih) (Max): 600 mA
  • Current - Gate Trigger (Igt) (Max): 200 mA
  • Current - On State (It (AV)) (Max): 1473 A
  • Current - On State (It (RMS)) (Max): 2913 A
  • Current - Off State (Max): 100 mA
  • Current - Non Rep. Surge 50, 60Hz (Itsm): 20A, 21.2A
  • Case/Package: TO-200AC, K-PUK, A-24
  • Operating Temperature: -40°C ~ 125°C
  • Status: obsolete
