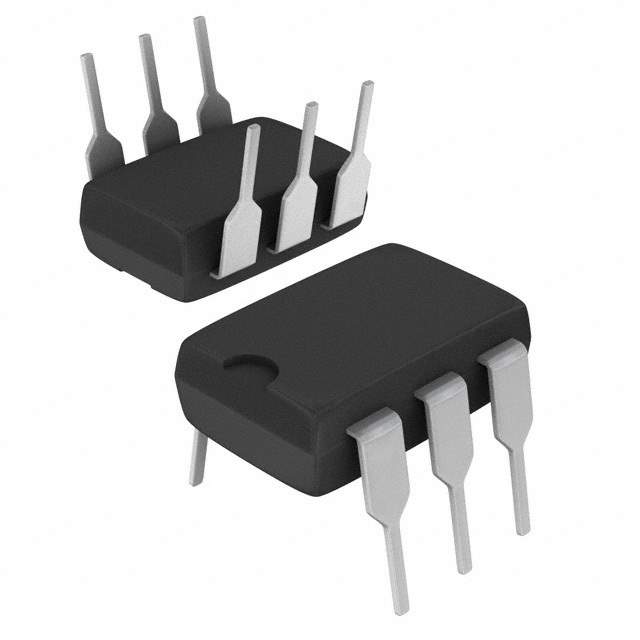

TCDT1102 Real Image
Same model may have multiple batches, images only for reference.

TCDT1102

Part No TCDT1102
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 5KV TRANS 6DIP
Datasheet
TCDT1102 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 63% @ 10mA
Maximum DC Current Transfer Ratio 125% @ 10mA
Switching Turn-On and Turn-Off Time 11μs, 7μs
Rise and Fall Time 7μs, 6.7μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 32V
Channel Output Current 50mA
Forward Voltage 1.25V
Continuous forward current- Max 60mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C to 110°C
Mounting Through Hole
Case / Package 6-DIP
Win Source Part Number 057036-TCDT1102
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TCDT1102 CAD Model

Description

The Vishay TCDT1102 is a medium-popularity electronic component with limited supply and demand status.

  • Manufacturer: Vishay
  • Type: transistor output
  • Forward Voltage: 1.25V
  • Mounting: through-hole
  • Package: 6-DIP case
  • Isolation Voltage: 5000Vrms
  • Minimum DC Current Transfer Ratio: 63% @ 10mA
  • Maximum DC Current Transfer Ratio: 125% @ 10mA
  • Switching Turn-On Time: 11μs
  • Switching Turn-Off Time: 7μs
  • Rise Time: 7μs
  • Fall Time: 6.7μs
  • Maximum Output Voltage: 32V
  • Channel Output Current: 50mA
  • Continuous Forward Current: 60mA
  • Ideal for: use in isolators
