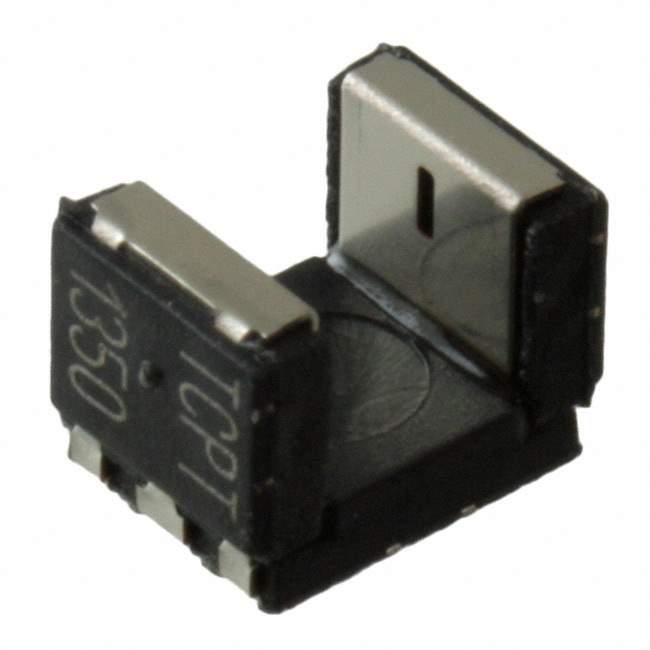

TCPT1350X01

Part No TCPT1350X01
Manufacturer Vishay
Catalog Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Description SENSOR OPT SLOT PHOTOTRANS MODUL  /  Optical Sensor Through-Beam 0.118" (3mm) Phototransistor Module, Slotted
Datasheet
TCPT1350X01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Mfr Vishay Semiconductor Opto Division
Series Automotive, AEC-Q101
Package Tape & Reel
Sensing Distance 0.118" (3mm)
Sensing Method Through-Beam
Output Configuration Phototransistor
Current - DC Forward (If) (Max) 15 mA
Current - Collector (Ic) (Max) 20 mA
Voltage - Collector Emitter Breakdown (Max) 20 V
Response Time 9µs, 16µs
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case Module, Slotted
Type Unamplified
Base Product Number TCPT1350
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.9500
Other Names TCPT1350X01TR,TCPT1350X01DKR,TCPT1350X01CT
Standard Package 2,000
Win Source Part Number 959445-TCPT1350X01
Ultra Librarian 3D Model Ultra Librarian TCPT1350X01 CAD Model

Description

The 959445-TCPT1350X01 is a phototransistor output optical sensor that belongs to the automotive AEC-Q101 series. The unamplified type sensor comes in a slotted module package and is mounted on SMD (SMT). The sensing method is through-beam, and the sensing distance is 0.118 inches (3mm). The sensor has a response time of 9-16 microseconds, and the standard package contains 2,000 pieces. The product is rated for a breakdown voltage of 20V and a current of 20mA. The product is ECCN EAR99 and has an HTSUS code of 8541.49.9500.
