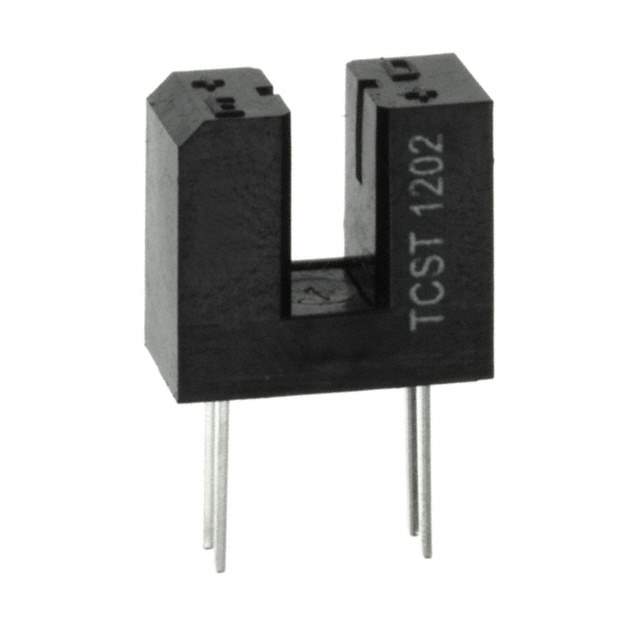

TCST1202 Real Image
Same model may have multiple batches, images only for reference.

TCST1202

Part No TCST1202
Manufacturer Vishay
Catalog Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Description SENSR OPTO SLOT 3.1MM TRANS THRU
Datasheet
TCST1202 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Sensing Distance 0.122" (3.1mm)
Sensing Method Transmissive
Continuous forward current- Max 60mA
Maximum Current Collector 200mA
VCEO Maximum Collector-Emitter Breakdown Voltage 70V
Response Time 10μs, 8μs
Temperature Range - Operating -55°C to 85°C
Mounting Through Hole
Type Unamplified
Win Source Part Number 1106455-TCST1202
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TCST1202 CAD Model

Description

The Vishay TCST1202 is a transmissive sensor that is unamplified and has a response time of 10μs and 8μs.

  • Sensing Distance: 0.122" (3.1mm)
  • Maximum Collector Current: 200mA
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 70V
  • Continuous Forward Current-Max: 60mA
  • Mounting: through-hole mounted
  • Packaging: tube/rail
  • Operating Temperature Range: -55°C to 85°C
  • Popularity: medium
  • Supply and Demand: balanced
