Same model may have multiple batches, images only for reference.

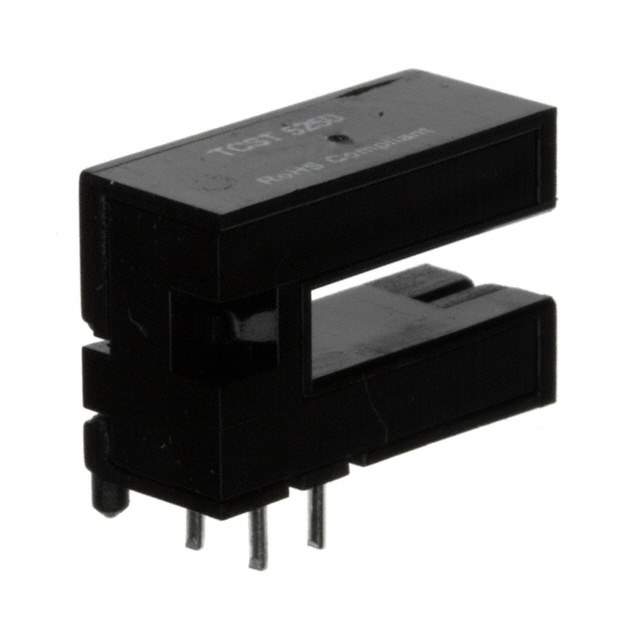

TCST5250 Real Image
Same model may have multiple batches, images only for reference.

TCST5250

Part No TCST5250
Manufacturer Vishay
Catalog Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Description SENSR OPTO SLOT 2.7MM TRANS THRU
Datasheet
TCST5250 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Sensing Distance 0.106" (2.7mm)
Sensing Method Transmissive
Continuous forward current- Max 60mA
Maximum Current Collector 100mA
VCEO Maximum Collector-Emitter Breakdown Voltage 70V
Response Time 15μs, 10μs
Temperature Range - Operating -25°C to 85°C
Mounting Through Hole, Right Angle
Type Unamplified
Win Source Part Number 089922-TCST5250
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name TCST5250
Introduction Date June 13, 2000
ECCN EAR99
Country of Origin Philippines
Halogen Free Unknown
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian TCST5250 CAD Model

Description

The Vishay TCST5250 is a high popularity unamplified sensor that is packaged on a tube/rail.

  • Part Number: TCST5250
  • Manufacturer: Vishay
  • Popularity: high
  • Amplification: unamplified
  • Packaging: tube/rail
  • Sensing Distance: 0.106 inches or 2.7mm
  • Response Time: 15μs or 10μs
  • Sensing Method: transmissive
  • Maximum Collector Current: 100mA
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 70V
  • Maximum Forward Current: 60mA
  • Operating Temperature Range: -25°C to 85°C
  • Introduction Date: June 13, 2000
  • Applications: sensors and transducers applications
