Same model may have multiple batches, images only for reference.

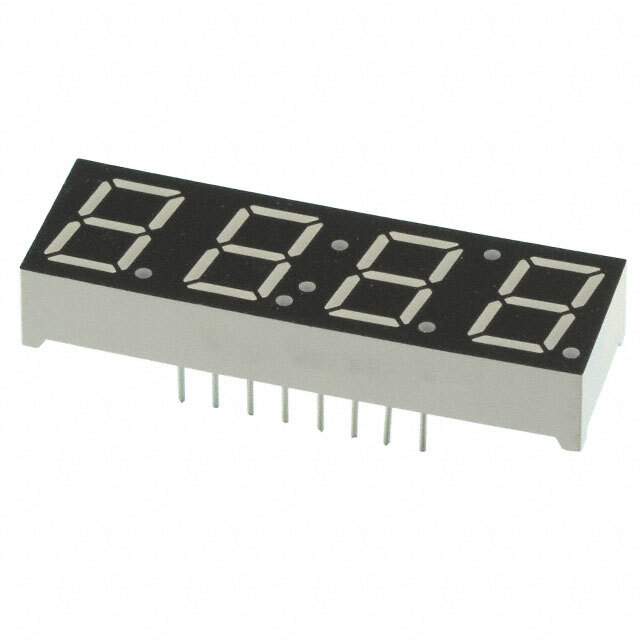

TDCG1060M Real Image
Same model may have multiple batches, images only for reference.

TDCG1060M

Part No TDCG1060M
Manufacturer Vishay
Catalog Display Modules - LED Character and Numeric
Description DISP 7SEG 0.39" QUAD GRN 16DIP / Display Modules - LED Character and Numeric Green 7-Segment Clock 4 Character Common Cathode 2V 20mA 0.504" H x 1.583" W x 0.276" D (12.80mm x 40.20mm x 7.00mm) 16-DIP (0.400", 10.16mm)
Datasheet
TDCG1060M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Manufacturer Vishay Semiconductor Opto Division
Packaging Bulk
Number of Characters 4
Size / Dimension 0.504" H x 1.583" W x 0.276" D (12.80mm x 40.20mm x 7.00mm)
Digit/Alpha Size 0.39" (10.00mm)
Display Type 7-Segment Clock
Common Pin Common Cathode
Color Green
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Millicandela Rating 4mcd
Wavelength - Peak 573nm
Power Dissipation (Max) 60mW
Case / Package 16-DIP (0.400", 10.16mm)
Base Product Number TDCG1060
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.41.0000
Standard Package 384
Win Source Part Number 1331905-TDCG1060M
Ultra Librarian 3D Model Ultra Librarian TDCG1060M CAD Model

Description

This electronic component is a display module with LED character and numeric features.

  • Color: Green
  • Size/Dimension: 0.504" H x 1.583" W x 0.276" D (12.80mm x 40.20mm x 7.00mm)
  • Package: Bulk
  • Standard Package Contains: 384 components
  • Millicandela Rating: 4mcd
  • Voltage Forward (Vf): 2V
  • Current Test Required: 20mA
  • Wavelength Peak: 573nm
  • Power Dissipation (max): 60mW
  • Display Type: 7-Segment Clock Display
  • Characters: 4
  • Digit/Alpha Size: 0.39" (10.00mm)
  • Common Pin: Common Cathode
  • Case/Package: 16-DIP (0.400", 10.16mm)
