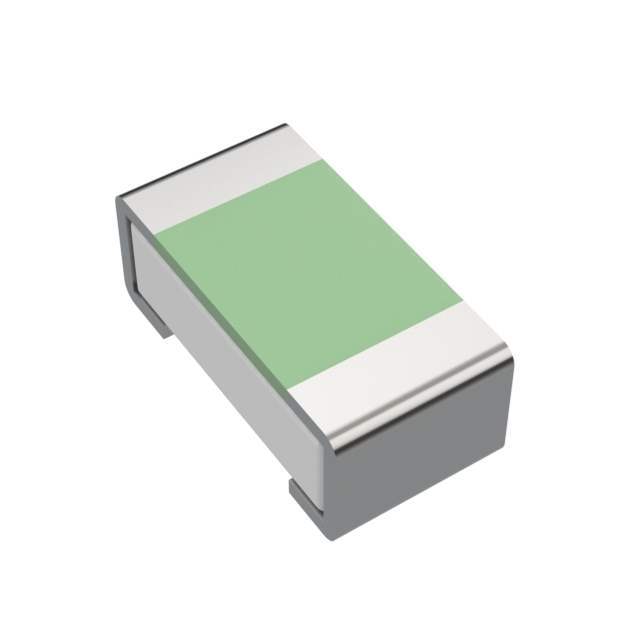

TNPW02015K00BEED Vishay Dale
Same model may have multiple batches, images only for reference.

TNPW02015K00BEED

Part No TNPW02015K00BEED
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 5K OHM 0.1% 0.075W 0201
Datasheet
TNPW02015K00BEED Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Dale
Category Resistors > Chip Resistor - Surface Mount
Part Status Active
Resistance 5 kOhms
Tolerance ±0.1%
Composition Thin Film
Temperature Coefficient ±25ppm/°C
Operating Temperature -55°C ~ 155°C
Package / Case 0201 (0603 Metric)
Size / Dimension 0.024" L x 0.012" W (0.60mm x 0.30mm)
Ultra Librarian 3D Model Ultra Librarian TNPW02015K00BEED CAD Model

Description

FEATURES

• Rated dissipation P70 up to 0.52 W for size 1206

• AEC-Q200 qualified

• Single lot date code (optional)

• Permissible film temperature up to 175 °C

• Superior temperature cycling robustness

• Excellent overall stability at different environmental conditions

• Superior moisture resistivity, |ΔR/R| < 0.1 % (85 °C; 85 % RH; 1000 h)

APPLICATIONS

• Automotive

• Industrial equipment with enhanced requirements

• Test and measuring equipment

• Medical equipment
