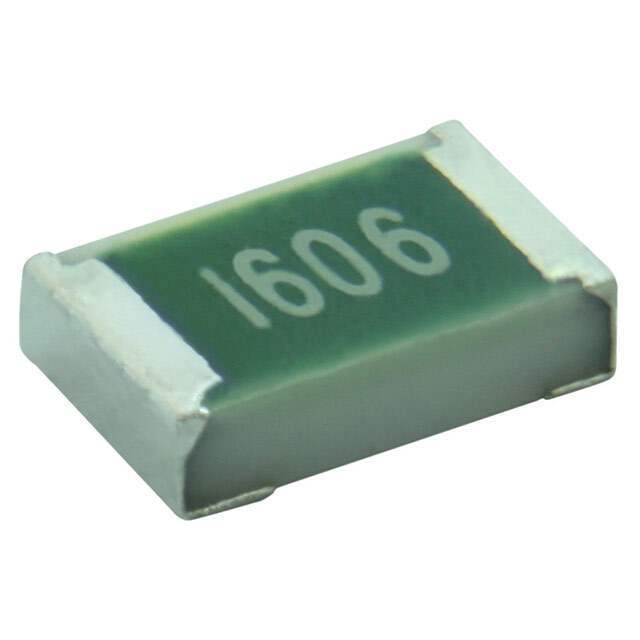

TNPW08053K01BEEA Vishay Dale TNPW08053K01BEEA Vishay Dale
Same model may have multiple batches, images only for reference.
TNPW08053K01BEEA Vishay Dale TNPW08053K01BEEA Vishay Dale
TNPW08053K01BEEA Vishay Dale TNPW08053K01BEEA Vishay Dale
Same model may have multiple batches, images only for reference.

TNPW08053K01BEEA

Part No TNPW08053K01BEEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 3.01K OHM 0.1% 0.26W 0805
Datasheet
TNPW08053K01BEEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Dale
Category Resistors > Chip Resistor - Surface Mount
Part Status Active
Resistance 3.01 kOhms
Tolerance ±0.1%
Composition Thin Film
Temperature Coefficient ±25ppm/°C
Operating Temperature -55°C ~ 175°C
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.022" (0.55mm)
Ultra Librarian 3D Model Ultra Librarian TNPW08053K01BEEA CAD Model

Description

Vishay Automotive Grade TNPW e3 thin film flat chip resistors are the perfect choice for most fields of modern electronics where highest reliability and stability is of major concern. Typical applications include automotive, industrial, test and measuring equipment, and medical equipment.
