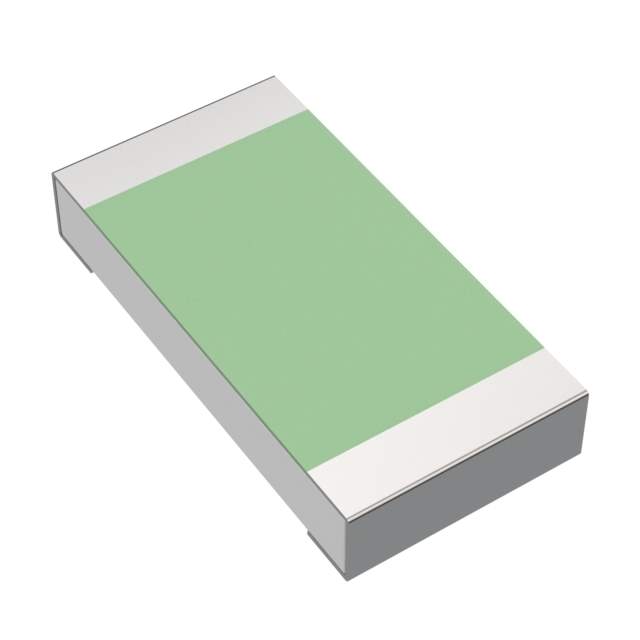

TNPW12066K20BEEA Real Image1 TNPW12066K20BEEA Real Image2
Same model may have multiple batches, images only for reference.
TNPW12066K20BEEA Real Image1 TNPW12066K20BEEA Real Image2
TNPW12066K20BEEA Real Image1 TNPW12066K20BEEA Real Image2
Same model may have multiple batches, images only for reference.

TNPW12066K20BEEA

Part No TNPW12066K20BEEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 6.2K OHM 0.1% 1/4W 1206 / 6.2 kOhms ±0.1% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant Thin Film
Datasheet
TNPW12066K20BEEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay
Series TNPW e3
Package Tape & Reel
Resistance 6.2 kOhms
Tolerance ±0.1%
Power (Watts) 0.25W, 1/4W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Ratings AEC-Q200
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Failure Rate -
Base Product Number TNPW1206
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Standard Package 5,000 pcs
Win Source Part Number 1383685-TNPW12066K20BEEA
Ultra Librarian 3D Model Ultra Librarian TNPW12066K20BEEA CAD Model

Description

The 1383685-TNPW12066K20BEEA is a chip resistor from Vishay's TNPW e3 series.

  • Size: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Resistance Value: 6.2 kOhms
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Composition: Thin Film
  • Features: Anti-Sulfur, Moisture Resistant
  • Application: Automotive
  • Power Rating: 0.25W (1/4W)
  • Packaging: Tape and Reel
  • Package/Case: 1206 (3216 Metric)
